Same model may have multiple batches, images only for reference.

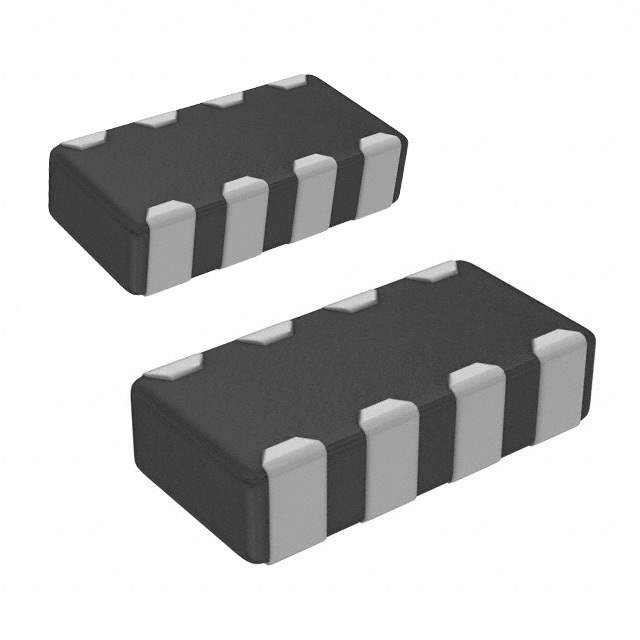

MZA3216S601A Real Image
Same model may have multiple batches, images only for reference.

MZA3216S601A

Part No MZA3216S601A
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 1206 4LN  /  600 Ohms @ 100 MHz 4 Signal Line Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 200mA 500mOhm
Datasheet
MZA3216S601A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr TDK Corporation
Series MZA
Package Tape & Reel
Product Status Obsolete
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 500mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric), Array, 8 PC Pad
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-3350-1,445-3350-6,445-3350-2
Standard Package 4,000
Win Source Part Number 1073992-MZA3216S601A
Ultra Librarian 3D Model Ultra Librarian MZA3216S601A CAD Model

Description

The MZA3216S601A is a ferrite bead and chip filter from TDK Corporation.

  • Filter Type: signal line filter
  • Maximum Current Rating: 200mA
  • Package: tape and reel
  • Standard Package: 4,000 units
  • Mounting: SMD (SMT)
  • Package/Case: 1206 (3216 Metric), array, 8 PC pad
  • Operating Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8548.00.0000
  • Suitable For: smartphones, tablets, and other mobile devices
