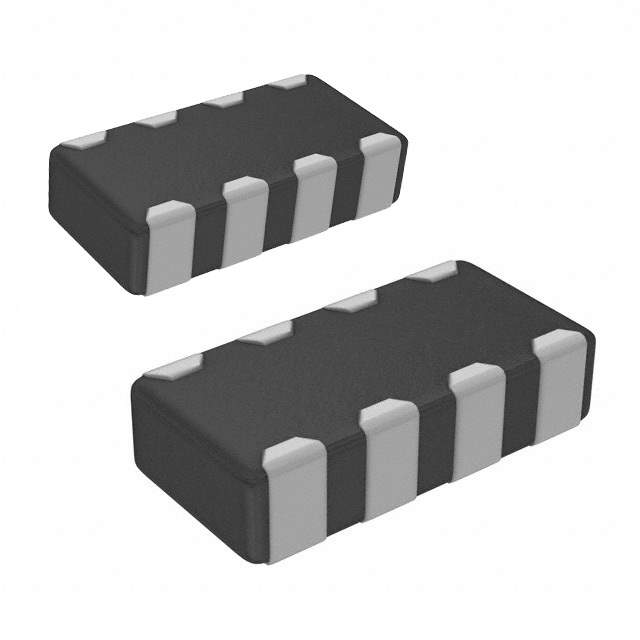

MZA3216S600A Real Image
Same model may have multiple batches, images only for reference.

MZA3216S600A

Part No MZA3216S600A
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 60 OHM 1206 4LN
Datasheet
MZA3216S600A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 60 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 200 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 059782-MZA3216S600A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MZA3216S600A CAD Model

Description

The TDK Corporation MZA3216S600A is a signal line filter that has a maximum current rating of 300mA.

  • Impedance: 60 Ohm @ 100MHz
  • DC resistance: 200 mOhm
  • Configuration: 4-line
  • Package: reel
  • Maximum height: 0.039" (1.00mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • The MZA3216S600A is a high-quality signal line filter that provides reliable performance in a variety of applications.
