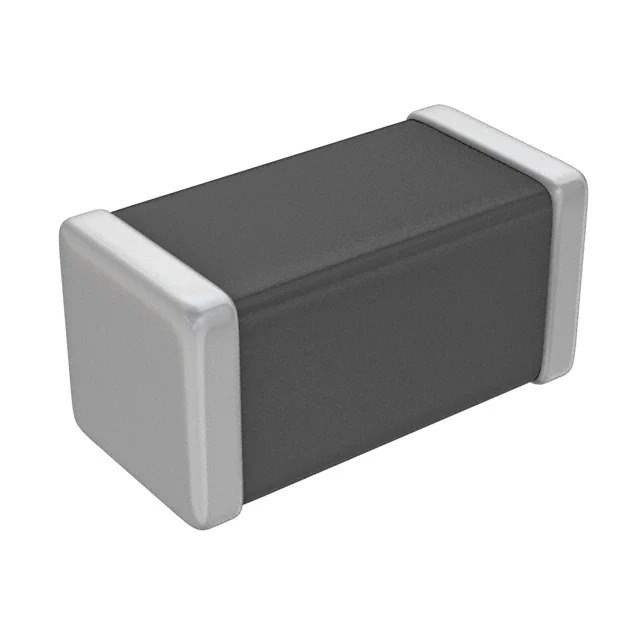

MPZ1005S121ET000 Real Image
Same model may have multiple batches, images only for reference.

MPZ1005S121ET000

Part No MPZ1005S121ET000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 120 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MPZ-E
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 120 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 95mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 747701-MPZ1005S121ET000
Ultra Librarian 3D Model Ultra Librarian MPZ1005S121ET000 CAD Model

Description

The 747701-MPZ1005S121ET000 is a ferrite bead and chip filter from TDK Corporation's MPZ-E series.

  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Maximum Current Rating: 1.5A
  • Application: Power Line
  • Impedance: 120 Ohms @ 100 MHz
  • Package: Surface Mount
  • Packaging: Tape & Reel
  • Height: 0.022" (0.55mm)
  • Operating Temperature: -55°C to 125°C
  • Status: Active
  • Standard Package: 10,000 pcs
