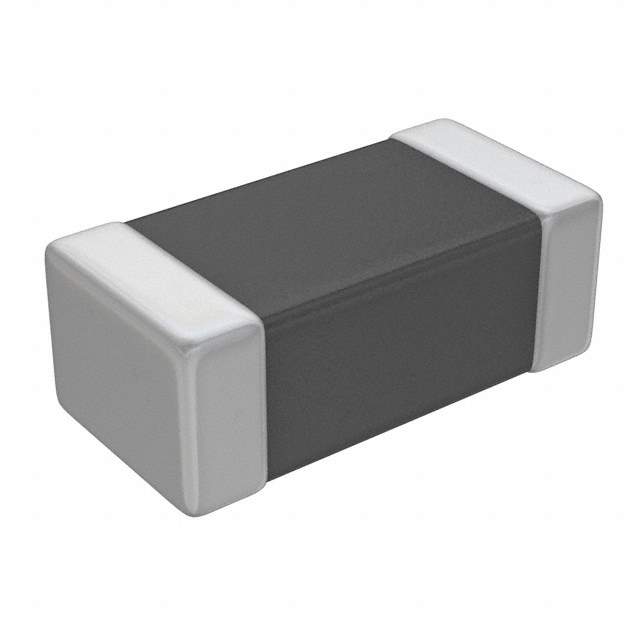

MMZ1608B221CTDH5 Real Image
Same model may have multiple batches, images only for reference.

MMZ1608B221CTDH5

Part No MMZ1608B221CTDH5
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 220 OHM 0603 1LN  /  220 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 500mA 250mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr TDK Corporation
Series MMZ
Package Tape & Reel
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 220 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 250mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Mounting SMD (SMT)
Height (Max) 0.030" (0.75mm)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-172809-6,445-172809-1,445-172809-2
Standard Package 4,000
Win Source Part Number 1006819-MMZ1608B221CTDH5
Ultra Librarian 3D Model Ultra Librarian MMZ1608B221CTDH5 CAD Model

Description

The TDK Corporation MMZ1608B221CTDH5 is a ferrite bead filter designed for use in signal line filters.

  • Impedance: 220 Ohms @ 100 MHz
  • DC Resistance: 250mOhm
  • Current Rating: 500mA
  • Mounting: SMD technology
  • Package: 0603 (1608 Metric)
  • Height: 0.030" (0.75mm)
  • Operating Temperature: -55°C ~ 125°C
  • AEC-Q200: Rated
  • REACH: unaffected
  • Manufacturer: TDK Corporation
