Same model may have multiple batches, images only for reference.

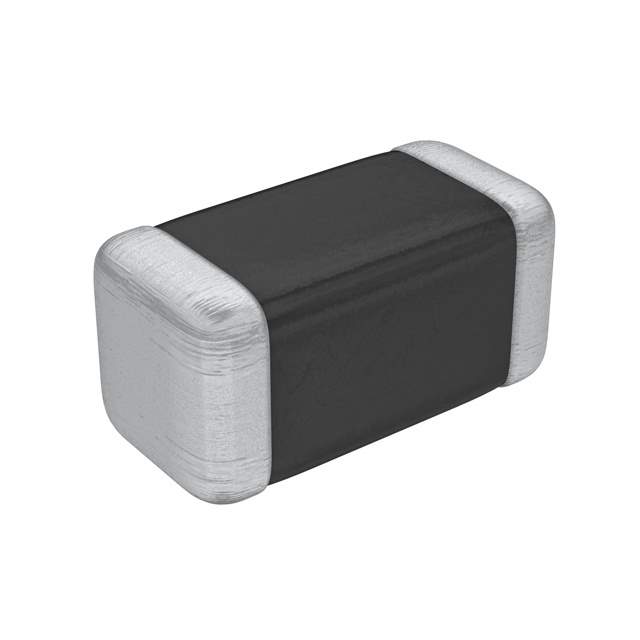

MLZ1608M220WTD25 Real Image
Same model may have multiple batches, images only for reference.

MLZ1608M220WTD25

Part No MLZ1608M220WTD25
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 150MA 2.4 OHM SMD / 22 µH Shielded Multilayer Inductor 150 mA 2.4Ohm 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLZ
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 150 mA
Current - Saturation (Isat) 55mA
Shielding Shielded
DC Resistance (DCR) 2.4Ohm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names MLZ1608M220WTD25-ND,445-175589-6,445-175589-2,445-175589-1
Standard Package 4,000
Win Source Part Number 1128734-MLZ1608M220WTD25
Ultra Librarian 3D Model Ultra Librarian MLZ1608M220WTD25 CAD Model

Description

The MLZ1608M220WTD25 is a multilayer fixed inductor that comes in a 0603 (1608 Metric) package.

  • Manufacturer: TDK Corporation
  • Package: 0603 (1608 Metric)
  • Shielding: shielded
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.4Ohm
  • Operating Temperature: -55°C ~ 125°C
  • Current Rating: 150mA
  • AEC-Q200 Rated: Yes
  • REACH: unaffected
  • MSL Level: 1 (Unlimited)
  • Standard Package: 4,000
