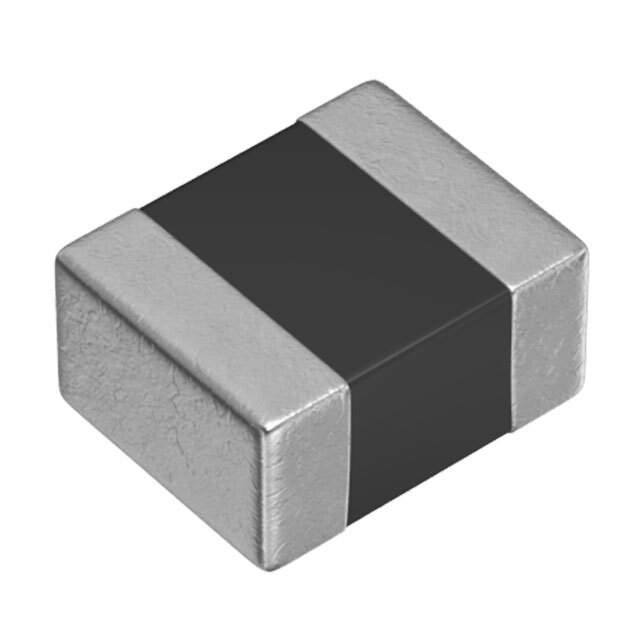

MLP2520V3R3MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520V3R3MT0S1

Part No MLP2520V3R3MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 900MA 200 MOHM
Datasheet
MLP2520V3R3MT0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 900mA
DC Resistance (DCR) 260 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 059021-MLP2520V3R3MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2520V3R3MT0S1 CAD Model

Description

The TDK Corporation MLP2520V3R3MT0S1 is a multilayer inductor designed to meet the high current and low profile requirements of various power supply applications.

  • Current Rating: With a maximum current rating of 900mA and an inductance of 3.3μH.
  • Compactness: this inductor offers a compact and efficient solution for power conversion circuits.
  • Mounting Style: The SMD (SMT) mounting style.
  • DC Resistance: and low DC resistance of 260 mOhm Max make it easy to integrate into your designs.
  • Tolerance: The TDK MLP2520V3R3MT0S1 has a tolerance of ±20%.
  • Temperature Range: and a temperature range of -40°C to 125°C, making it suitable for use in harsh environments.
  • Popularity and Status: This product has a medium popularity and is currently active.
