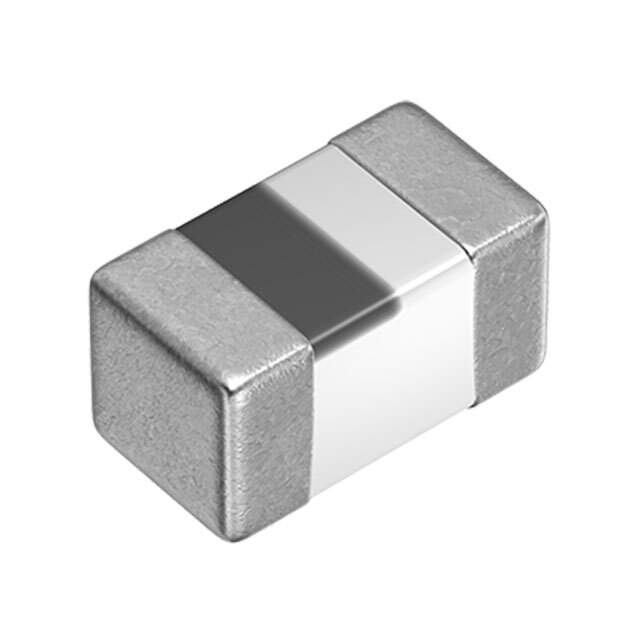

Same model may have multiple batches, images only for reference.

MLG0402P5N1HT000

Name: MLG0402P5N1HT000
Brand: TDK Corporation
SKU: 964868
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	MLG0402P5N1HT000
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 5.1NH 160MA 1.4OHM SMD / 5.1 nH Unshielded Multilayer Inductor 160 mA 1.4Ohm Max 01005 (0402 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TDK Corporation
Series	MLG-P
Package	Tape & Reel (TR)
Type	Multilayer
Material - Core	Non-Magnetic
Inductance	5.1 nH
Tolerance	±3%
Current Rating (Amps)	160 mA
Shielding	Unshielded
DC Resistance (DCR)	1.4Ohm Max
Q @ Freq	8 @ 500MHz
Frequency - Self Resonant	5GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting	SMD (SMT)
Package / Case	01005 (0402 Metric)
Supplier Device Package	01005 (0402 Metric)
Dimension	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)	0.009" (0.22mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	20,000
Win Source Part Number	964868-MLG0402P5N1HT000
Ultra Librarian 3D Model	Ultra Librarian MLG0402P5N1HT000 CAD Model

Alternative Products

Description

The TDK Corporation MLG-P series fixed inductor is a multilayer type inductor with an inductance of 5.1 nH and a tolerance of ±3%.

Inductance: 5.1 nH
Tolerance: ±3%
Magnetic Shielding: Non-Magnetic
DC Resistance: 1.4 Ohm max
Q @ Freq: 8 @ 500MHz
Frequency Self-Resonant: 5GHz
Package/Case: 01005 (0402 Metric)
Height Seated: 0.009" (0.22mm)
Mounting Type: SMD (SMT)
Packaging: Tape & Reel
Suitable for: Smartphones, tablets, and laptops
