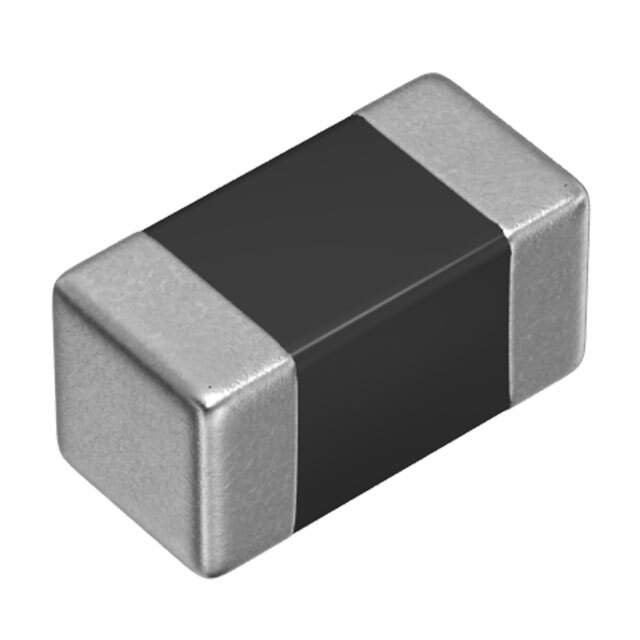

MLF1005VR18JT000 Real Image
Same model may have multiple batches, images only for reference.

MLF1005VR18JT000

Part No MLF1005VR18JT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 180NH 160MA 720MOHM SM / 180 nH Shielded Multilayer Inductor 160 mA 720mOhm Max 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLF
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 180 nH
Tolerance ±5%
Current Rating (Amps) 160 mA
Shielding Shielded
DC Resistance (DCR) 720mOhm Max
Q @ Freq 15 @ 25MHz
Frequency - Self Resonant 320MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-9510-6,MLF1005VR18J,445-9510-2,445-9510-1
Standard Package 10,000
Win Source Part Number 966171-MLF1005VR18JT000
Ultra Librarian 3D Model Ultra Librarian MLF1005VR18JT000 CAD Model

Description

The TDK Corporation MLF1005VR18JT000 is a fixed inductor with a multilayer type and a 0402 (1005 Metric) package/case.

  • Type: multilayer
  • Package/Case: 0402 (1005 Metric)
  • Shielding: shielded
  • Inductance: 180 nH
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Manufacturer: TDK Corporation
  • Standard Package: 10,000
  • Tolerance: ±5%
  • Core Material: ferrite
  • Current Rating: 160 mA
  • Inductance Frequency Test: 25 MHz
