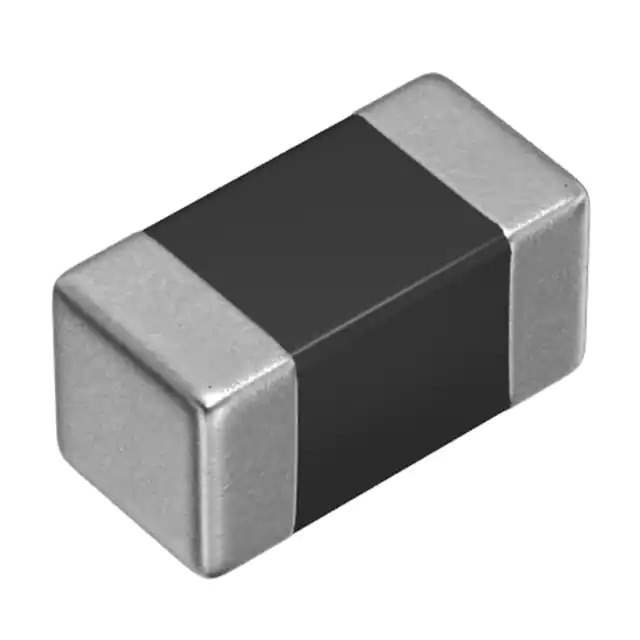

MLF1005LR82KT000 Real Image
Same model may have multiple batches, images only for reference.

MLF1005LR82KT000

Part No MLF1005LR82KT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 820NH 35MA 590MOHM SMD
Datasheet
MLF1005LR82KT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series MLF
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 820 nH
Tolerance ±10%
Current Rating (Amps) 35 mA
Shielding Shielded
DC Resistance (DCR) 590mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 130MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 10 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 732648-MLF1005LR82KT000
Ultra Librarian 3D Model Ultra Librarian MLF1005LR82KT000 CAD Model

Description

The MLF1005LR82KT000 is an obsolete fixed inductor from TDK Corporation.

  • Series: MLF series
  • Inductance: 820 nH with a tolerance of ±10%
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.022" (0.55mm) when seated
  • Shielded: Shielded
  • Package: tape & reel package
  • DC Resistance (DCR): 590mOhm max
  • Q Value: 25 @ 10MHz
  • Self Resonant Frequency: 130MHz
  • Current Rating: 35mA
  • Mounting: suitable for surface mount mounting
  • Case: packaged in a 0402 (1005 Metric) case
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Standard Package: includes 10,000 pieces
