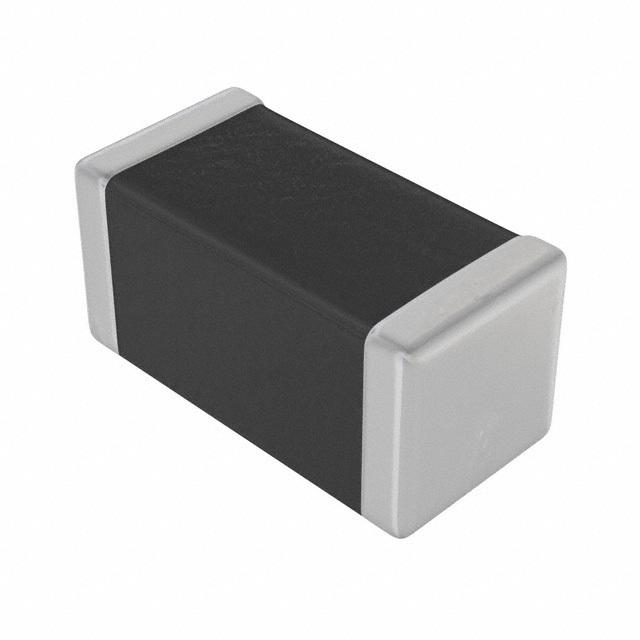

MLF1005LR82K TDK Corporation
Same model may have multiple batches, images only for reference.

MLF1005LR82K

Part No MLF1005LR82K
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 820NH 35MA 590 MOHM
Datasheet
MLF1005LR82K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Multilayer
Material - Core Ferrite
Inductance 820nH
Tolerance ±10%
Current Rating 35mA
DC Resistance (DCR) 590 mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 130MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 1077711-MLF1005LR82K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MLF1005LR82K CAD Model

Description

This TDK Corporation multilayer inductor with part number 1077711-MLF1005LR82K has a maximum height of 0.022 inches and a ferrite core material.

  • Manufacturer: TDK Corporation
  • Part Number: 1077711-MLF1005LR82K
  • Maximum Height: 0.022 inches
  • Core Material: ferrite
  • Tolerance: ±10%
  • Inductance: 820nH
  • Maximum DC Resistance: 590 mOhm
  • Current Rating: 35mA
  • Component Type: SMD (SMT)
  • Q @ Freq: 25 @ 10MHz
  • Self-Resonant Frequency: 130MHz
  • Status: not for new designs
  • Operating Temperature: -40°C to 85°C
