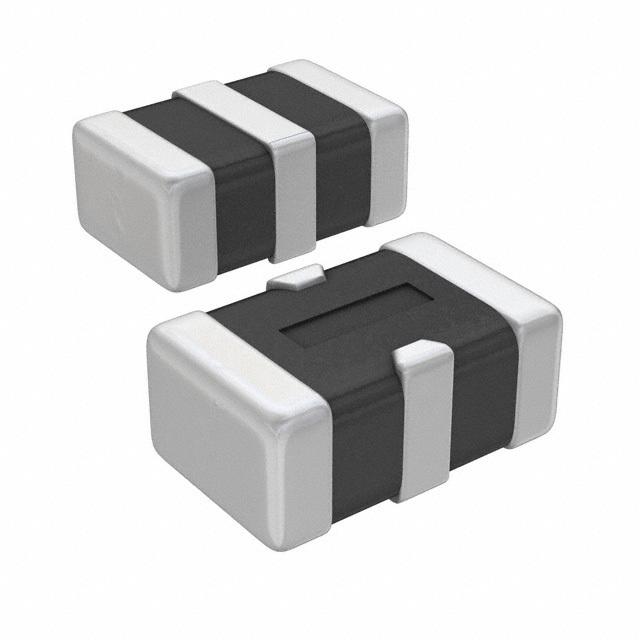

Same model may have multiple batches, images only for reference.
MEM2012W241R TDK Corporation
Same model may have multiple batches, images only for reference.

MEM2012W241R

Part No MEM2012W241R
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 240MHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 5th
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 240MHz (Cutoff)
Current 100 mA
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 10V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 3 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.087" (2.20mm)
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 228008-MEM2012W241R
Ultra Librarian 3D Model Ultra Librarian MEM2012W241R CAD Model

Description

The TDK Corporation MEM2012W241R is an EMI/RFI filter from TDK Corporation's MEM series.

  • Filter Type: Low pass
  • Package Type: Tape and reel
  • Size Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Application: Data lines in mobile devices
  • Rated Voltage: 10V
  • Technology: LC (Pi)
  • Filter Order: 5th
  • Center/Cutoff Frequency: 240MHz (cutoff)
  • Current Rating: 100 mA
  • Resistance Channel: 0 ohms
  • Mounting Type: Surface mount
  • Operating Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Standard Package: 1,000 pcs
