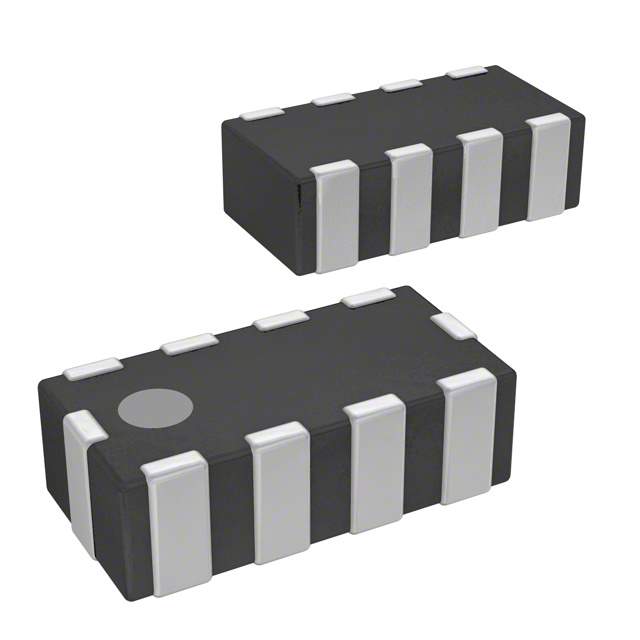

MEA2010LC150T002 Real Image
Same model may have multiple batches, images only for reference.

MEA2010LC150T002

Part No MEA2010LC150T002
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 15PF 240MHZ SMD
Datasheet
MEA2010LC150T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 240MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 15pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 058447-MEA2010LC150T002
Ultra Librarian 3D Model Ultra Librarian MEA2010LC150T002 CAD Model

Description

The MEA2010LC150T002 from TDK Corporation is a low pass filter with a voltage rating of 6.3V.

  • Voltage Rating: 6.3V
  • Cutoff Frequency: 240MHz
  • Attenuation Value: 20dB @ 800MHz to 3GHz
  • Channels: 4
  • Current: 100mA
  • Suitable for: data lines in mobile devices
  • Technology: LC
  • Filter Order: 2nd
  • Height: 0.024 inches (0.60mm)
  • Dimension: 0.079 inches (2.00mm) in length and 0.039 inches (1.00mm) in width
  • Status: Active
  • Temperature Range: -40 degrees Celsius to 85 degrees Celsius
