Same model may have multiple batches, images only for reference.

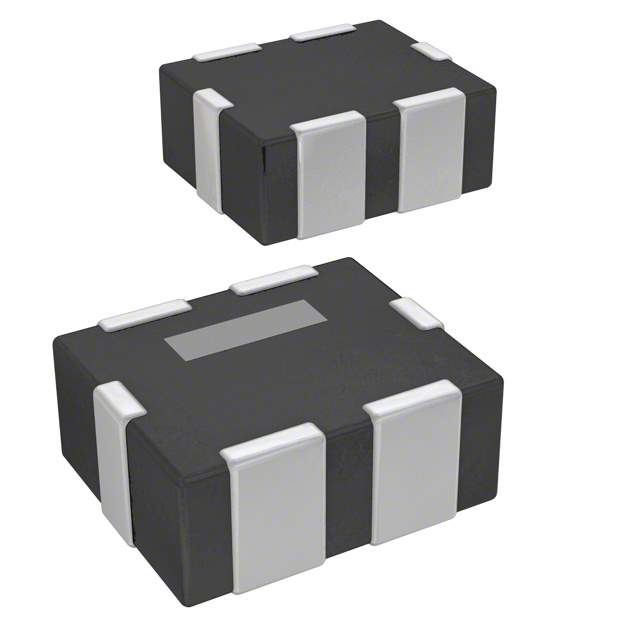

MEA1210LC150T001 Real Image
Same model may have multiple batches, images only for reference.

MEA1210LC150T001

Part No MEA1210LC150T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 15PF 240MHZ SMD
Datasheet
MEA1210LC150T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 2
Center / Cutoff Frequency 240MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 15pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 1075762-MEA1210LC150T001
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MEA1210LC150T001 CAD Model

Description

The MEA1210LC150T001 is a low pass filter that is designed for data lines in mobile devices manufactured by TDK Corporation.

  • Voltage Rating: 6.3V
  • Current: 100mA
  • Technology: LC
  • Attenuation: 20dB @ 800MHz to 3GHz
  • Channels: 2
  • Filter Order: 2nd
  • Center or Cutoff Frequency: 240MHz
  • Resistance Channel: ohms
  • ESD Protection: Not Available
  • Category: Filters
  • Temperature Range: -40°C to 85°C
