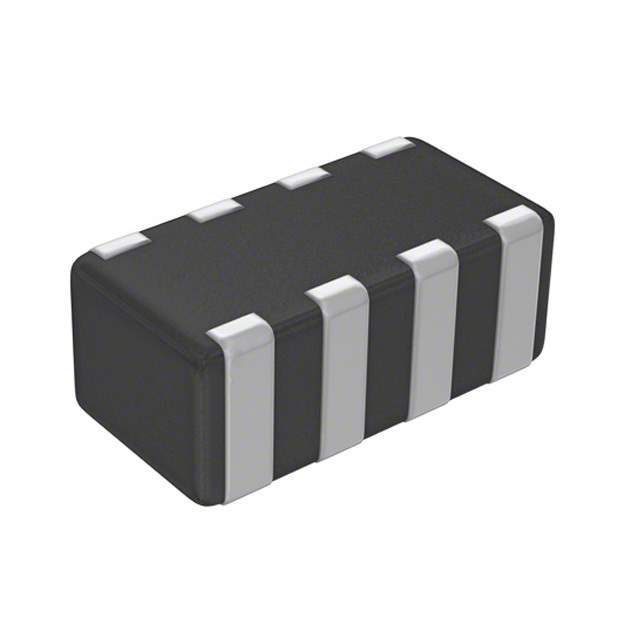

MCZ2010AH201L4T000 Real Image
Same model may have multiple batches, images only for reference.

MCZ2010AH201L4T000

Part No MCZ2010AH201L4T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 4LN 200 OHM SMD / 4 Line Common Mode Choke Surface Mount 200 Ohms @ 100 MHz 100mA DCR 3.5Ohm
Datasheet
MCZ2010AH201L4T000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series MCZ-AH
Package Tape & Reel
Product Status Obsolete
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 200 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 3.5Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height (Max) 0.024" (0.60mm)
Package / Case 0804 (2010 Metric) , 8 Lead
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1339917-MCZ2010AH201L4T000
Ultra Librarian 3D Model Ultra Librarian MCZ2010AH201L4T000 CAD Model

Description

The TDK Corporation MCZ-AH series common mode choke from TDK Corporation is designed for signal line filtering.

  • Type: Common Mode
  • Number of Lines: 4
  • Impedance @ Frequency: 200 Ohms @ 100 MHz
  • Packaging: Tape and Reel
  • Package / Case: 0804 (2010 Metric)
  • Number of Leads: 8
  • Voltage Rating: 5V DC
  • Current (Max): 100mA
  • Height: 0.024" (0.60mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8548.00.0000
  • Product Status: Obsolete
