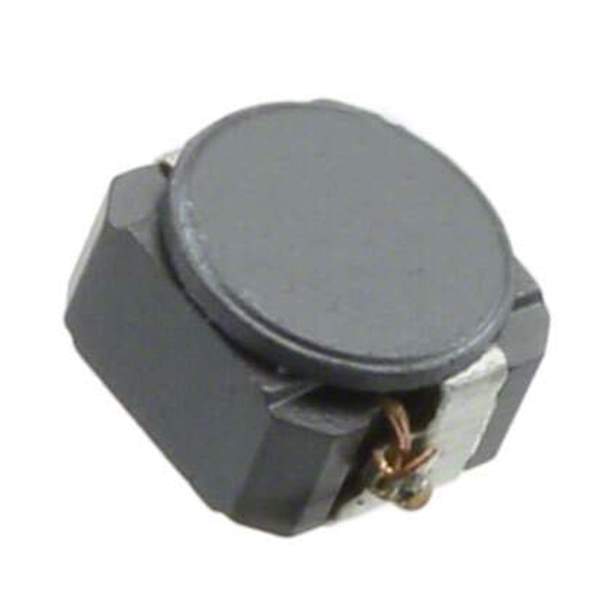

Same model may have multiple batches, images only for reference.

LTF3020T-100M-D

Name: LTF3020T-100M-D
Brand: TDK Corporation
SKU: 710956
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LTF3020T-100M-D
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 10UH 820MA 260 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±20%
Current Rating (Amps)	820mA
Current - Saturation	590mA
Shielding	Shielded
DC Resistance (DCR)	260mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	1MHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.177" L x 0.118" W (4.50mm x 3.00mm)
Height - Seated (Maximum)	0.079" (2.00mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	710956-LTF3020T-100M-D
Popularity	Low
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LTF3020T-100M-D CAD Model

Alternative Products

Description

The TDK Corporation LTF3020T-100M-D is a high-quality wirewound inductor that is designed for use in a wide range of electronic devices.

Shielding Feature: suitable for use in applications that require high noise reduction
Supply and demand status: balanced
Inductance: 10uH
Tolerance: ±20 percent
Ideal for: use in power supplies, audio equipment, and other electronic devices
Manufacturer: TDK Corporation
