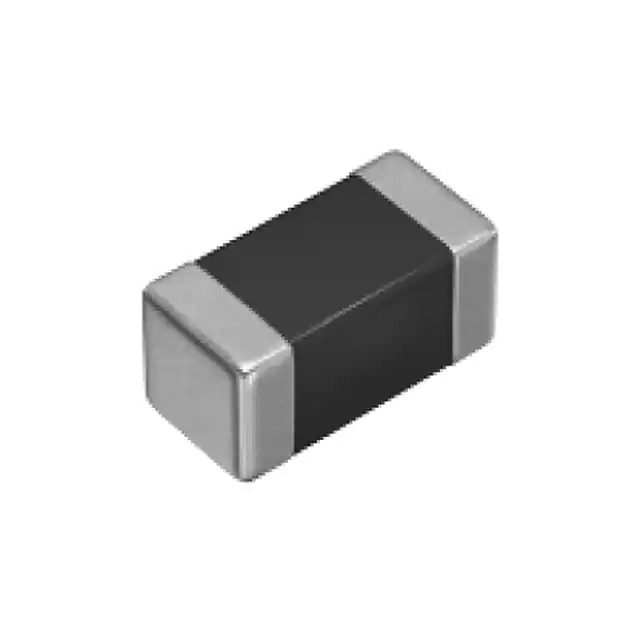

KLZ1608MHR220WTD25 TDK Corporation
Same model may have multiple batches, images only for reference.

KLZ1608MHR220WTD25

Part No KLZ1608MHR220WTD25
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 150MA 3.12OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series KLZ-HR
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 150 mA
Current - Saturation (Isat) 55mA
Shielding Shielded
DC Resistance (DCR) 3.12Ohm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 2 MHz
Features Soft Termination
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370231-KLZ1608MHR220WTD25
Ultra Librarian 3D Model Ultra Librarian KLZ1608MHR220WTD25 CAD Model

Description

The TDK KLZ-HR series is a multilayer fixed inductor from TDK Corporation.

  • Inductance: 22 µH
  • Current Rating: 150 mA
  • Temperature Range: -55°C to 150°C
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Package Size: 0603 (1608 Metric)
  • Supplier Device Package: 0603 (1608 Metric)
  • Product Status: Active
  • Features: Soft Termination, Shielded
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Seated Height: 0.037" (0.95mm)
  • REACH: Unaffected
  • ECCN: EAR99
