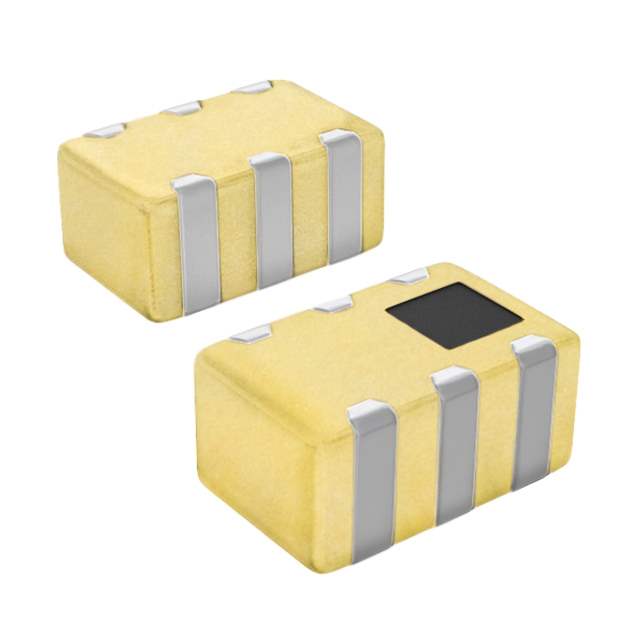

HHM1520 Real Image
Same model may have multiple batches, images only for reference.

HHM1520

Part No HHM1520
Manufacturer TDK Corporation
Catalog Balun
Description XFRMR BALUN RF 2.4GHZ SMD
Datasheet
HHM1520 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 2.4GHz to 2.5GHz
Impedance - Unbalanced/Balanced 50 / 100 Ohm
Phase Difference 180° ±10
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 016951-HHM1520
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HHM1520 CAD Model

Description

The TDK Corporation 016951-HHM1520 is a surface mount RF/IF and RFID component. It has a frequency range of 2.4GHz to 2.5GHz and an impedance of 50/100 Ohm. The phase difference is 180 degrees +/-10 with insertion loss of 1.0dB and return loss of 10dB. It is suitable for use in various electronic devices. This component is packaged in reel-TR and has a medium popularity. The supply and demand status is sufficient.
