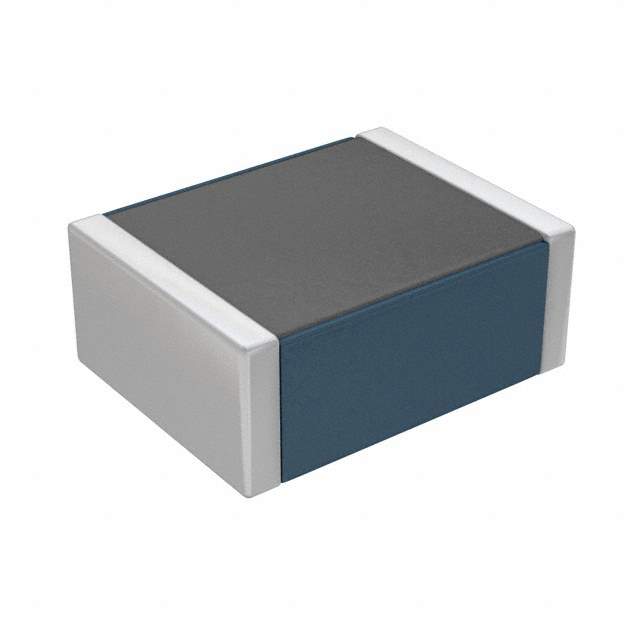

HF70ACC322513-TD25 Real Image
Same model may have multiple batches, images only for reference.

HF70ACC322513-TD25

Part No HF70ACC322513-TD25
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 52 OHM 1210 1LN  /  52 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1210 (3225 Metric) 1.5A 50mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr TDK Corporation
Series HF-ACC
Package Tape & Reel
Product Status Last Time Buy
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 52 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 50mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1210 (3225 Metric)
Mounting SMD (SMT)
Height (Max) 0.059" (1.50mm)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-172769-1,445-172769-2,445-172769-6
Standard Package 2,000
Win Source Part Number 1062624-HF70ACC322513-TD25
Ultra Librarian 3D Model Ultra Librarian HF70ACC322513-TD25 CAD Model

Description

The TDK Corporation HF-ACC series ferrite bead is a signal line filter that has an impedance of 52 Ohms @ 100 MHz.

  • Impedance: 52 Ohms @ 100 MHz
  • Maximum Current: 1.5A
  • DC Resistance: 50mOhm
  • Temperature Range: -40°C to 125°C
  • Height: 0.059" (1.50mm)
  • Mounting: SMD (SMT)
  • Package/Case Size: 1210 (3225 Metric)
  • Packaging: tape and reel
  • Standard Package: 2,000
  • AEC-Q200: rated
  • Alternative Parts: BK2125HS470-T, ACML-0805-500-T, ACML-0805-600-T, HF50ACC322513-TD25, BLM15PD600SN1D, and BKP1608HS600-THF70ACC322513TD25
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited) rating
  • REACH: unaffected
  • HTSUS code: 8548.00.0000
