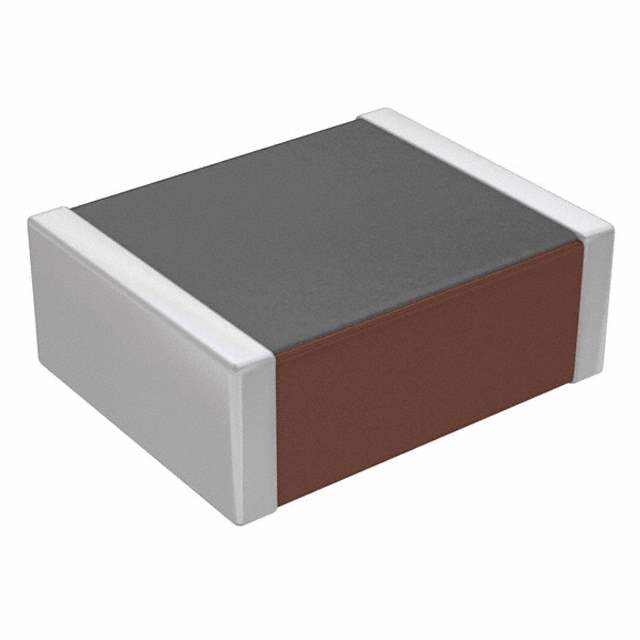

HF50ACB453215-T Real Image
Same model may have multiple batches, images only for reference.

HF50ACB453215-T

Part No HF50ACB453215-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 125 OHM 1812 1LN
Datasheet
HF50ACB453215-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 125 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 400 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.069" (1.75mm)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Win Source Part Number 016933-HF50ACB453215-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HF50ACB453215-T CAD Model

Description

The TDK Corporation SMD (SMT) signal line filter is designed for a maximum current rating of 300mA.

  • Impedance: 125 Ohm @ 100MHz
  • DC Resistance (DCR): 400 mOhm
  • Height: 0.069" (1.75mm)
  • Package: Reel
  • ECCN: EAR99 compliant
  • Supply and Demand Status: Balance
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Temperature Range: -40°C to 125°C
