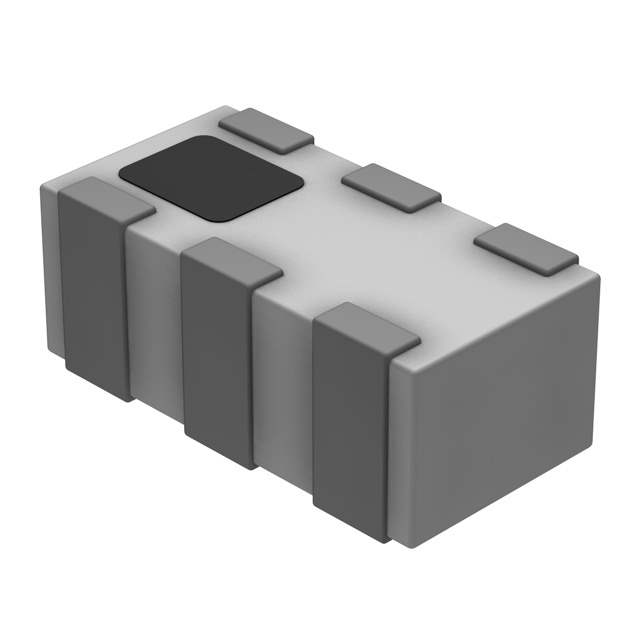

DPX165950DT-8126A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8126A1

Part No DPX165950DT-8126A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER WLAN 2.4GHZ, 5GHZ 1608
Datasheet
DPX165950DT-8126A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 4.9GHz to 5.95GHz
Return Loss (Low Band / High Band) 21.56dB / 16.62dB
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 6 PC Pad
Win Source Part Number 080620-DPX165950DT-8126A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8126A1 CAD Model

Description

DPX165950DT-8126A1 Ceramic Filter

The DPX165950DT-8126A1 offers top-tier performance for filtering applications in the RF domain, characterized by precision and efficiency.

  • Applications/Projects:
    • Broadcasting systems
    • Telemetry systems
    • Aerospace and defense communications
  • Features and Benefits:
    • Ultra-low insertion loss
    • High spurious rejection
    • Made with rugged materials for enhanced durability
  • Additional Details:
    • Frequency Band: 812.6 MHz
    • Temperature Range: -40 to +85°C
    • Enhanced shock and vibration resistance
