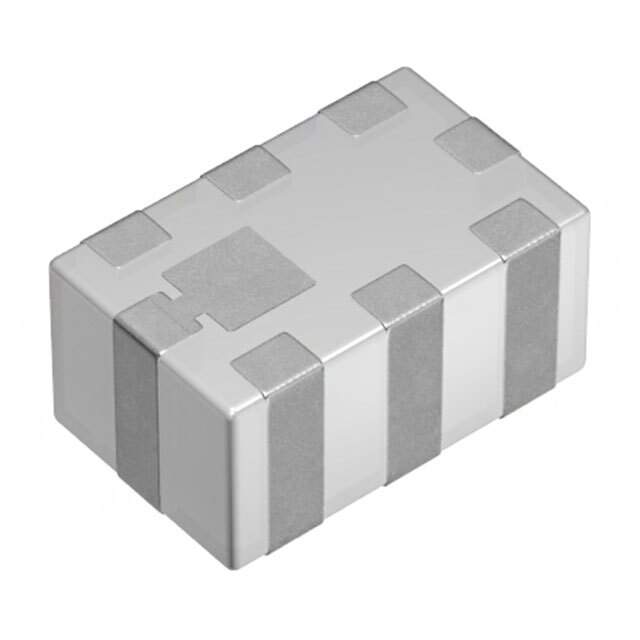

DEA202450BT-7116E1 Real Image
Same model may have multiple batches, images only for reference.

DEA202450BT-7116E1

Part No DEA202450BT-7116E1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BALANCE 2.45GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Balance
Insertion Loss 2dB
Mounting Style SMD
Manufacturer Package 0805 , 8 PC Pad
Parts Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Maximum) 0.041" (1.05mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 730548-DEA202450BT-7116E1
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA202450BT-7116E1 CAD Model

Description

The TDK Corporation DEA202450BT-7116E1 filter is a high-quality electronic component designed for use in various electronic applications.

  • Frequency Center: 2.45GHz
  • Insertion Loss: 2dB
  • Type: Balance Filter
  • Bandwidth: 100MHz
  • Package: 0805, 8 PC pad
