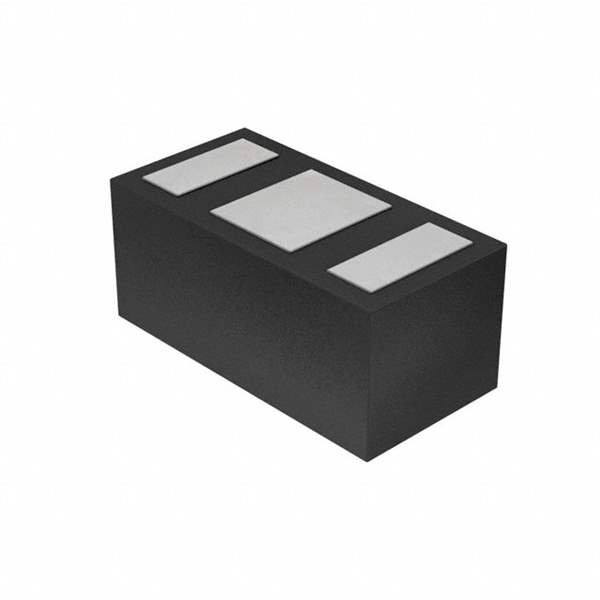

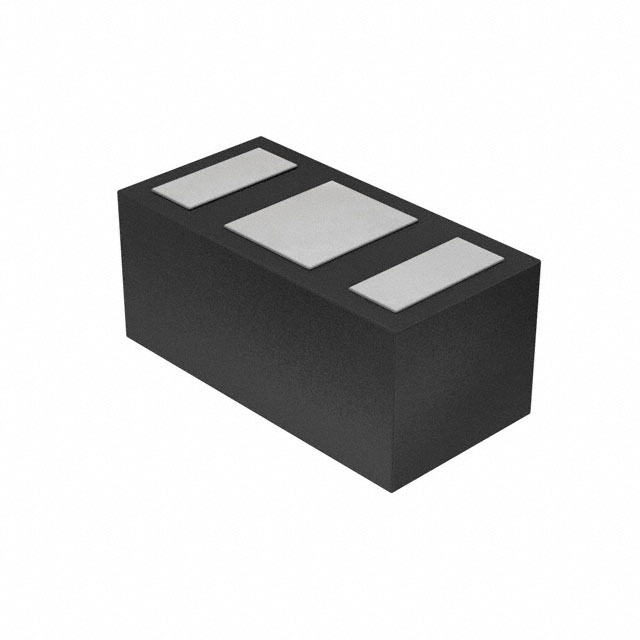

DEA162450BT-1288B1 TDK Corporation
Same model may have multiple batches, images only for reference.

DEA162450BT-1288B1

Part No DEA162450BT-1288B1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0603 / 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 0603 (1608 Metric), 3 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency 2.45GHz Center
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 3 PC Pad
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 107505-DEA162450BT-1288B1
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-1288B1 CAD Model

Description

Product Overview

The DEA162450BT-1288B1 offers enhanced functionality for today's technologically advanced applications. Engineered for durability and precision, it provides a reliable component solution for both developers and manufacturers.

Features and Benefits

  • Robust Construction: Built to withstand high-stress environments.
  • Precision Control: Accurate functioning ensures consistent application performance.
  • Wide Operating Temperature Range: Suitable for use in varying climates and conditions.

Applications

  • Telecommunications Equipment
  • GPS Systems
  • Robotics
  • Aerospace Technologies

The DEA162450BT-1288B1 offers a wide range of application possibilities, making it a versatile choice for engineers.
