DEA161910LT-5003C1 TDK Corporation

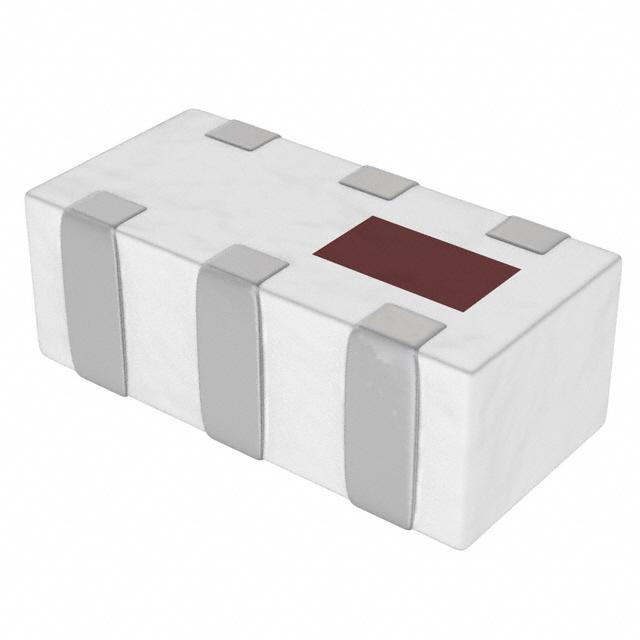

Same model may have multiple batches, images only for reference.

DEA161910LT-5003C1

Part No DEA161910LT-5003C1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 1.81GHZ 0603 / 1.81GHz Center Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 0.52dB 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Not For New Designs
Frequency 1.81GHz Center
Filter Type Low Pass
Insertion Loss 0.52dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 6 PC Pad
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 447749-DEA161910LT-5003C1
Ultra Librarian 3D Model Ultra Librarian DEA161910LT-5003C1 CAD Model

Description

The 447749-DEA161910LT-5003C1 is an RF filter from TDK Corporation.

  • Series: DEA
  • Packaging: Tape & reel
  • Size / Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Height (Max): 0.028" (0.70mm)
  • Filter Type: Low pass
  • Center Frequency: 1.81GHz
  • Insertion Loss: 0.52dB
  • Mounting Type: Surface mount
  • Package / Case: 0603 (1608 Metric)
  • PC Pad: 6
  • Operating Temperature: -40°C to 85°C
  • Lifecycle Status: Not for new designs
  • Standard Package: 4,000 pcs
