Same model may have multiple batches, images only for reference.

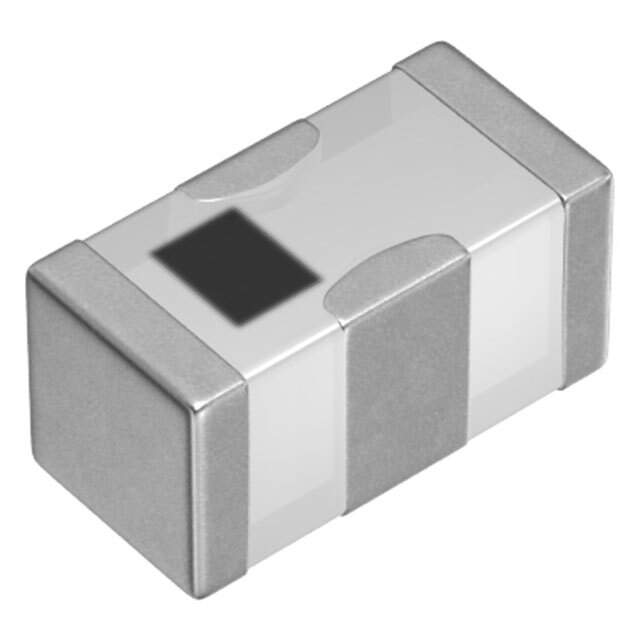

DEA160960LT-1169AA Real Image
Same model may have multiple batches, images only for reference.

DEA160960LT-1169AA

Part No DEA160960LT-1169AA
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 892MHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 11 Weeks
Features 892MHz Center Frequency Low Pass RF Filter (Radio Frequency) 136MHz Bandwidth 0.73dB 0603 (1608 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-180967-6, 445-180967-1, 445-180967-2
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916865-DEA160960LT-1169AA
Ultra Librarian 3D Model Ultra Librarian DEA160960LT-1169AA CAD Model

Description

It is a 892MHz center frequency low pass RF filter (Radio Frequency) with a 136MHz bandwidth and 0.73dB 0603 (1608 Metric), 6 PC Pad package.

  • Center Frequency: 892MHz
  • Filter Type: Low Pass
  • Bandwidth: 136MHz
  • Insertion Loss: 0.73dB
  • Package: 0603 (1608 Metric), 6 PC Pad
  • Mounting: Surface Mount
  • Category: Filter
  • Manufacturer: TDK Corporation
  • Part Number: DEA160960LT-1169AA
  • ECCN: EAR99
  • Estimated Production Lead Time: 11 weeks
  • MSL Level: 1 (Unlimited)
  • Quantity per Package: 4000
  • HTSUS: 8548.90.0100
  • Other Part Numbers: 445-180967-6, 445-180967-1, 445-180967-2
