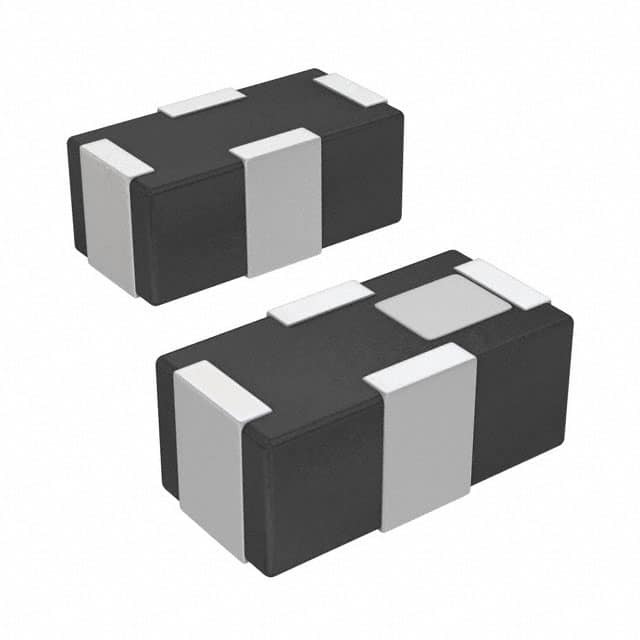

Same model may have multiple batches, images only for reference.
DEA102500LT-9052A1
Same model may have multiple batches, images only for reference.

DEA102500LT-9052A1

Part No DEA102500LT-9052A1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 2.3GHZ-2.5GHZ 0402 / RF Balun 2.3GHz ~ 2.5GHz 50 / -Ohm 0402 (1005 Metric), 4 PC Pad
Datasheet
DEA102500LT-9052A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Active
Frequency Range 2.3GHz ~ 2.5GHz
Impedance - Unbalanced/Balanced 50 / -Ohm
Phase Difference 178°
Insertion Loss (Max) 0.9dB
Return Loss (Min) 15dB
Package / Case 0402 (1005 Metric), 4 PC Pad
Mounting Type Surface Mount
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 868320-DEA102500LT-9052A1
Ultra Librarian 3D Model Ultra Librarian DEA102500LT-9052A1 CAD Model

Description

The TDK Corporation DEA series balun, with a part number 868320-DEA102500LT-9052A1, is a surface mount component designed for RF and wireless applications.

  • Frequency Range: 2.3GHz to 2.5GHz
  • Impedance: 50 Ohm (unbalanced)
  • Phase Difference: 178°
  • Insertion Loss: 0.9dB
  • Minimum Return Loss: 15dB
  • Package: Tape and reel
  • Standard Package: 10,000 pcs
  • Mounting Style: Surface mount
  • Manufacturer: TDK Corporation
  • Product Status: Active
