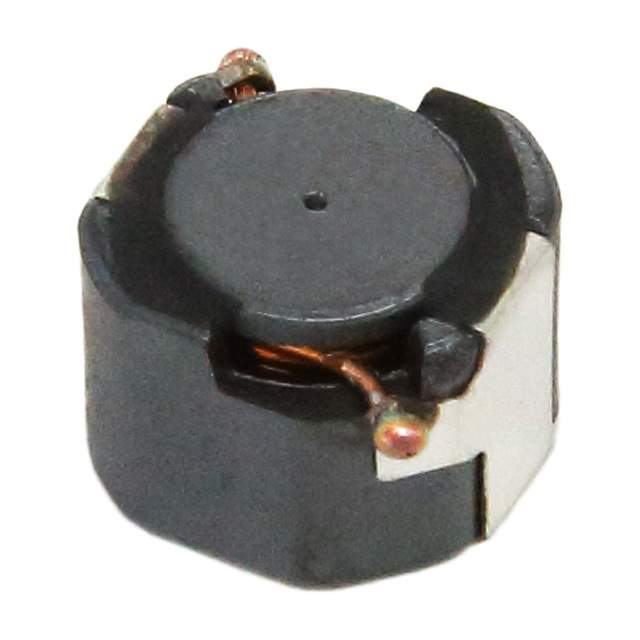

CLF6045T-4R7N Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-4R7N

Part No CLF6045T-4R7N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite | FIXED IND 4.7UH 3.2A 23 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating (Amps) 3.2A
Current - Saturation 2.5A
Shielding Shielded
DC Resistance (DCR) 29.9mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 752646-CLF6045T-4R7N
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CLF6045T-4R7N CAD Model

Description

It has a reference case of reel and a mounting style of SMD.

  • Reference Case: reel
  • Mounting Style: SMD
  • Shielding: shielded
  • Inductance: 4.7μH with a tolerance of ±30%
  • Material-Core: ferrite
  • Current Saturation: 2.5A
  • DC Resistance (DCR): 29.9mOhm Max
  • Temperature Range - Operating: -40°C ~ 105°C
  • Manufacturer Package: nonstandard
  • Height - Seated (Maximum): 0.177" (4.50mm)
  • Win Source Part Number: 752646-CLF6045T-4R7N
