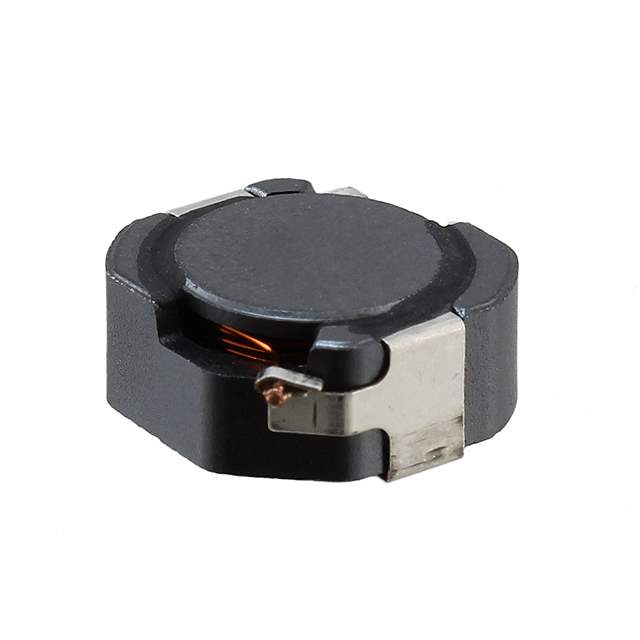

CLF12555T-101M-D Real Image
Same model may have multiple batches, images only for reference.

CLF12555T-101M-D

Part No CLF12555T-101M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 1.3A 228MOHM SMD / 100 µH Shielded Drum Core, Wirewound Inductor 1.3 A 228mOhm Max Nonstandard
Datasheet
CLF12555T-101M-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series CLF-D
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 228mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.476" W (12.50mm x 12.10mm)
Height - Seated (Max) 0.230" (5.85mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-15166-6,445-15166-1,445-15166-2
Standard Package 500
Win Source Part Number 1009773-CLF12555T-101M-D
Ultra Librarian 3D Model Ultra Librarian CLF12555T-101M-D CAD Model

Description

The CLF-D series inductors from TDK Corporation are ideal for use in a wide range of applications.

  • Series: CLF-D
  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielding: Shielded
  • Inductance: 100 µH
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Current: 1.3 A
  • DC Resistance: 228mOhm Max
  • Operating Temperature Range: -40°C to 150°C
  • Dimensions: 0.492" L x 0.476" W (12.50mm x 12.10mm)
  • Core Material: Ferrite
  • Current Saturation: 2.1A
