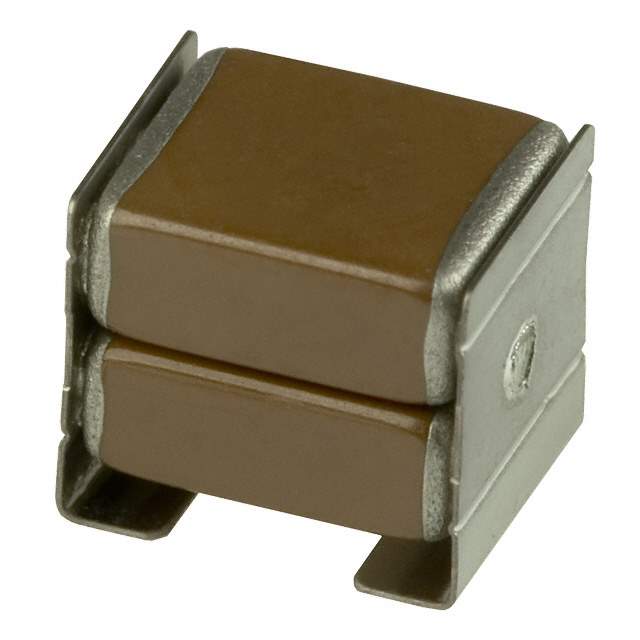

The CKG57NX7R2E105MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are ubiquitous in electronic circuits due to their reliability, small size, and versatility, serving as bypass, decoupling, filtering, and energy storage components. This particular capacitor is engineered with characteristics that make it suitable for more demanding applications requiring stable performance across a broad range of temperatures.

Applications

• Automotive Electronics: Suitable for applications in automotive systems due to its temperature stability and reliability.
• Industrial Control Systems: Used in industrial equipment where robust performance is crucial.
• Medical Equipment: Employed in medical devices requiring high reliability and stable operation.
• Power Supplies: Filters noise and provides decoupling in power supply circuits.
• High-Temperature Applications: Well-suited for circuits operating in high-temperature environments.

Features

• Capacitance: 1.0µF (Microfarad).
• Voltage Rating: 250V DC.
• Temperature Coefficient: X7R. The X7R designation signifies a temperature coefficient within ±15% from -55°C to +125°C.
• Case Size: 2220 (5750 Metric). The physical dimensions are 5.7mm x 5.0mm.
• Termination: Sn (Tin).
• High Reliability: Provides reliable performance over a long lifespan.
• High Voltage: Can handle relatively high voltage levels.

Benefits

• Stable Capacitance Over Temperature: The X7R characteristic ensures minimal capacitance variation across a wide temperature range.
• High Voltage Performance: Suitable for circuits with elevated voltage levels.
• Robust Design: The 2220 case size provides good mechanical stability and handling.
• Long Operational Life: Designed for long-term reliability in demanding applications.
• Effective Filtering and Decoupling: Facilitates effective noise reduction and stable power supply performance.

Additional Details

The CKG57NX7R2E105MT009W capacitor is constructed with a ceramic dielectric material. It is intended for surface mount technology (SMT) assembly. Proper soldering techniques and equipment should be used when mounting this component. The 'MT009W' suffix likely indicates TDK's internal manufacturing code or packaging information. Proper storage conditions should be maintained to prevent degradation of the terminations. Always consult the manufacturer's datasheet for complete specifications, including tolerance, ESR (Equivalent Series Resistance), and other critical parameters.
