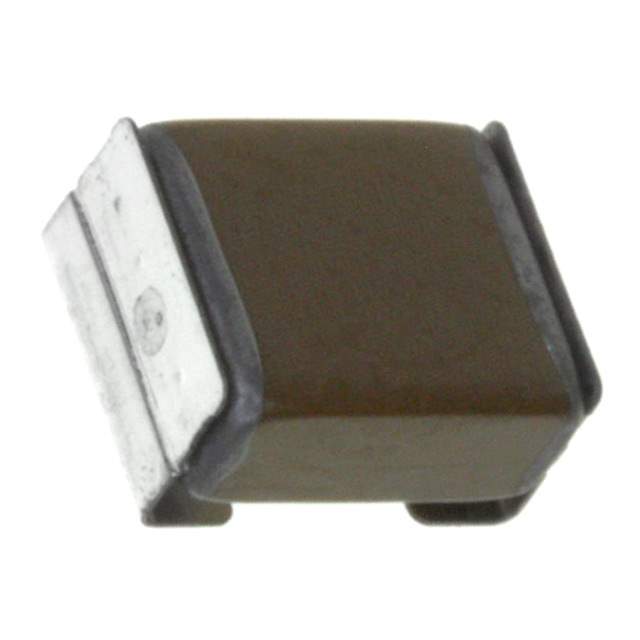

The CKG57NX7R2A106MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various purposes such as decoupling, bypassing, filtering, and smoothing. This particular capacitor belongs to the CKG series, indicating its specific design and performance characteristics. It is designed for surface mount technology (SMT) applications, making it suitable for automated assembly processes in high-volume manufacturing.

Applications

• Decoupling: Provides a local energy source for integrated circuits, minimizing voltage fluctuations.
• Bypassing: Filters out unwanted noise from power lines or signal paths.
• Filtering: Used in filter circuits to selectively pass or block certain frequencies.
• Smoothing: Reduces ripple voltage in power supplies.
• Consumer electronics: Smartphones, tablets, laptops, and other portable devices.
• Industrial equipment: Power supplies, motor drives, and control systems.
• Automotive electronics: Engine control units (ECUs), infotainment systems, and safety systems.

Features

• High Capacitance Value: 10µF, providing substantial charge storage capability.
• Voltage Rating: 100V DC, suitable for medium-voltage applications.
• X7R Dielectric: Offers stable capacitance performance over a wide temperature range (-55°C to +125°C).
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• Compact Size: 5.7 x 5.0 x 2.8mm dimensions, conserving board space.
• High Reliability: TDK's manufacturing processes ensure high reliability and long-term stability.

Benefits

• Improved Circuit Performance: Stable capacitance and low ESR contribute to enhanced circuit performance.
• Reduced Noise: Effective decoupling and bypassing minimize unwanted noise and interference.
• Space Savings: Compact size allows for denser circuit designs.
• Cost-Effective: MLCCs are generally cost-effective compared to other capacitor technologies.
• Easy Assembly: SMT design simplifies assembly and reduces manufacturing costs.

Technical Specifications

The CKG57NX7R2A106MT009W has a capacitance of 10µF with a tolerance of ±20%. Its voltage rating is 100V DC. The operating temperature range is -55°C to +125°C. The dielectric material is X7R, which provides a stable capacitance characteristic with temperature variations. The case size is 5.7 x 5.0 x 2.8mm. Termination is Tin plating.
