Same model may have multiple batches, images only for reference.

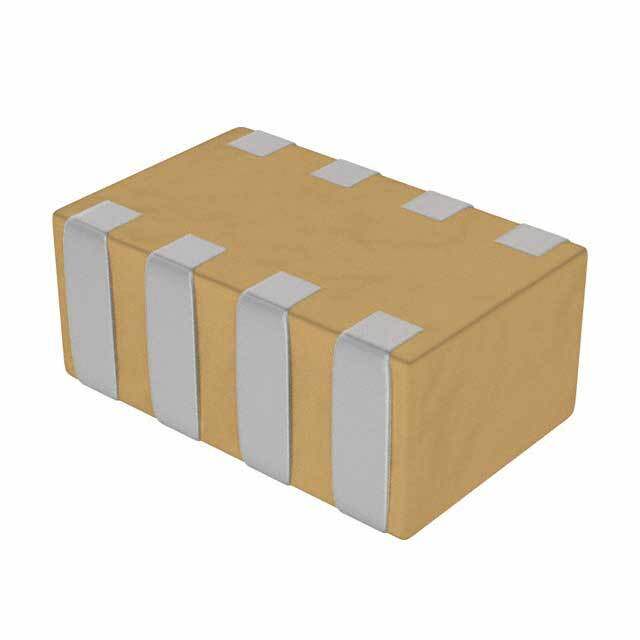

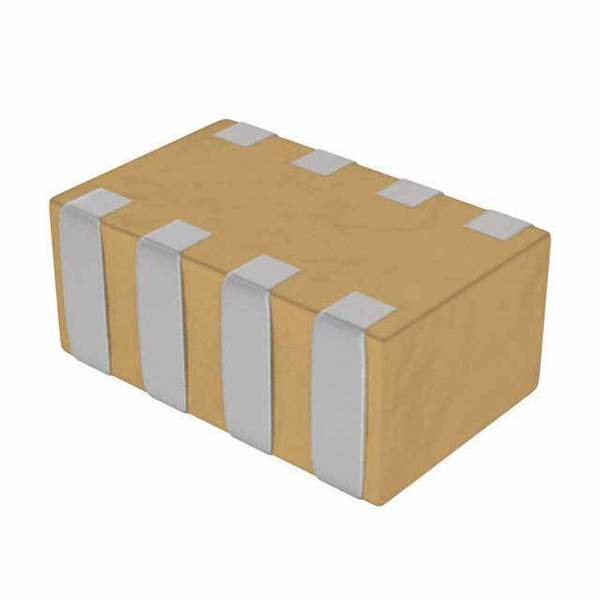

CKCL44X7R1H102M085AA Real Image
Same model may have multiple batches, images only for reference.

CKCL44X7R1H102M085AA

Part No CKCL44X7R1H102M085AA
Manufacturer TDK Corporation
Catalog Capacitor Networks, Arrays
Description CAP ARRAY 1000PF 50V X7R 0805
Datasheet
CKCL44X7R1H102M085AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Capacitor Networks, Arrays
Mfr TDK Corporation
Series CKC
Package Tape & Reel
Product Status Obsolete
Capacitance 1000pF
Tolerance ±20%
Voltage - Rated 50 V
Dielectric Material Ceramic
Number of Capacitors 4
Circuit Type Isolated
Temperature Coefficient X7R
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 4,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 846110-CKCL44X7R1H102M085AA
Ultra Librarian 3D Model Ultra Librarian CKCL44X7R1H102M085AA CAD Model

Description

The 846110-CKCL44X7R1H102M085AA is a capacitor network/array from the CKC series by TDK Corporation.

  • Series: CKC
  • Packaging: Tape and Reel
  • Size / Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height - Seated (Max): 0.039" (1.00mm)
  • Standard Package: 4,000 pcs
  • Capacitance: 1000pF
  • Tolerance: ±20%
  • Voltage - Rated: 50 V
  • Temperature Coefficient: X7R
  • Circuit Type: Isolated
  • Number of Capacitors: 4
  • Mounting Type: Surface Mount
  • Package / Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805 (2012 Metric)
  • HTSUS Code: 8532.24.0020
  • REACH: Unaffected
  • Product Status: Obsolete
