Same model may have multiple batches, images only for reference.

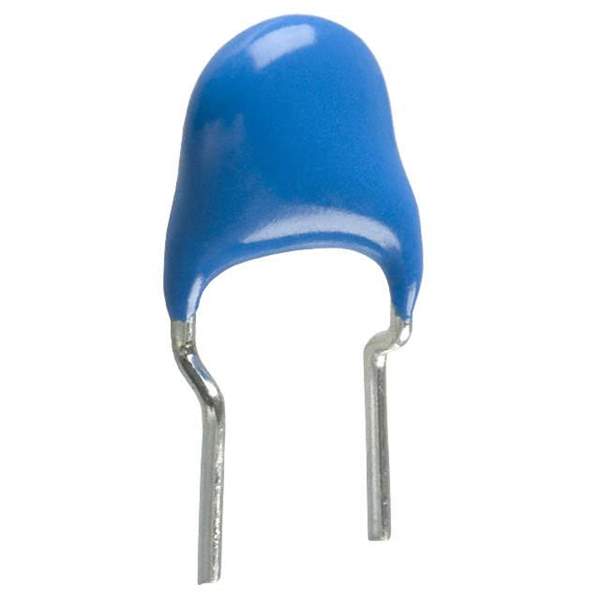

CK45-R3AD561K-NR Real Image
Same model may have multiple batches, images only for reference.

CK45-R3AD561K-NR

Part No CK45-R3AD561K-NR
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 560PF 1KV RADIAL
Datasheet
CK45-R3AD561K-NR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CK45-RR
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 560pF
Tolerance ±10%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient R
Operating Temperature Range -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.295" Dia (7.50mm)
Height - Seated (Maximum) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
Win Source Part Number 767167-CK45-R3AD561K-NR
Popularity Medium
Supply and Demand Status Limited
Family Name CK45-RR
Introduction Date July 26, 2001
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CK45-R3AD561K-NR CAD Model

Description

The TDK Corporation CK45-R3AD561K-NR is an electronic component manufactured by TDK Corporation.

  • Capacitance: 560pF
  • Voltage Rating DC: 1000V (1kV)
  • Series: CK45-RR
  • Mounting Style: Through hole
  • Features: High voltage, low dissipation factor
  • Status: EOL
  • Alternative Parts: ECKA3A561KRP, ECKN3A561KRP, ECKN3A561KBP
