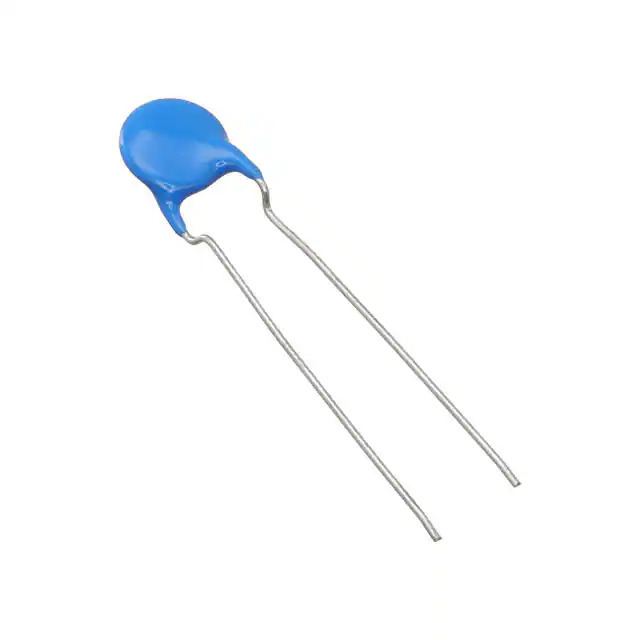

Same model may have multiple batches, images only for reference.
CK45-B3FD222KYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD222KYVNA

Part No CK45-B3FD222KYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 3KV RADIAL / 2200 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359921-CK45-B3FD222KYVNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD222KYVNA CAD Model

Description

The TDK Corporation CK45 series is a range of ceramic capacitors designed for general purpose electronic applications. This particular component, part number 1359921-CK45-B3FD222KYVNA, has a capacitance of 2200 pF and a voltage rating of 3000V.

  • Capacitance: 2200 pF
  • Voltage Rating: 3000V
  • Mounting: Through-Hole
  • Operating Temperature: -25°C to 105°C
  • Tolerance: ±10%
  • Temperature Coefficient: B
