Same model may have multiple batches, images only for reference.

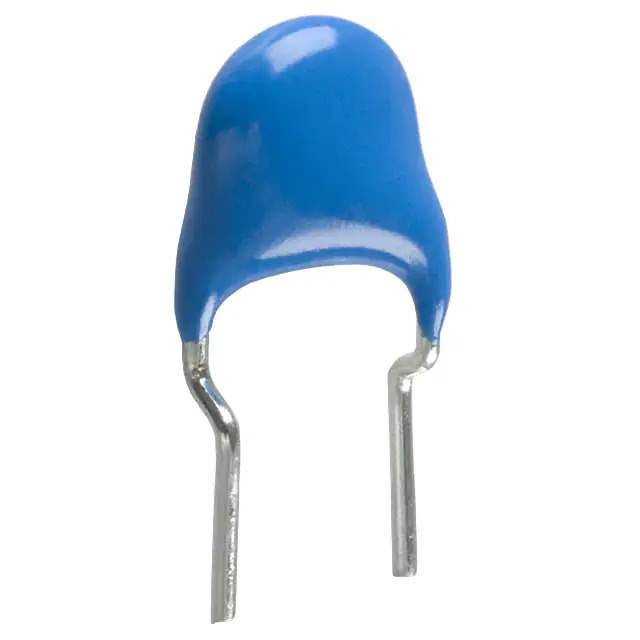

CK45-B3DD102KYNN Real Image
Same model may have multiple batches, images only for reference.

CK45-B3DD102KYNN

Part No CK45-B3DD102KYNN
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV RADIAL / 1000 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Datasheet
CK45-B3DD102KYNN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Obsolete
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 915359-CK45-B3DD102KYNN
Ultra Librarian 3D Model Ultra Librarian CK45-B3DD102KYNN CAD Model

Description

The CK45-B3DD102KYNN is a ceramic capacitor from the CK45 series.

  • Voltage Rating: 2000V (2kV)
  • Capacitance: 1000 pF
  • Tolerance: ±10%
  • Diameter: 0.295" (7.50mm)
  • Seated Height: 0.453" (11.50mm)
  • Application: general-purpose applications
  • Type: through-hole component
  • Package: radial, disc package
