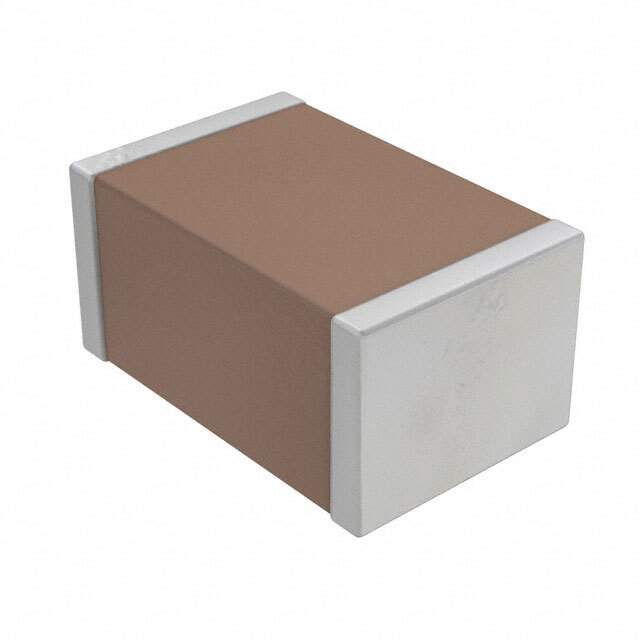

The CGA4J3X7R1C225K is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor is designed for general electronic applications requiring a relatively high capacitance value in a small form factor.

Applications

• Bypass capacitors in various electronic circuits
• Decoupling capacitors for integrated circuits (ICs)
• Smoothing capacitors in power supplies
• Filtering applications
• General-purpose applications in consumer electronics, industrial equipment, and automotive systems

Features

• Multilayer Ceramic Capacitor (MLCC) technology
• X7R dielectric material offering stable performance over temperature variations
• Capacitance value of 2.2μF (225)
• Voltage rating of 16V (1C)
• Compact size (typically 0805 or similar; datasheet needed for precise dimensions)
• RoHS compliant

Benefits

• Provides stable and reliable capacitance over a wide temperature range.
• Effectively reduces noise and voltage fluctuations in electronic circuits.
• Enables miniaturization of electronic devices due to its small size.
• Enhances the performance and reliability of electronic systems.
• Environmentally friendly due to RoHS compliance.

Additional Details

The X7R dielectric used in the CGA4J3X7R1C225K ensures that the capacitance remains within ±15% of its nominal value over a temperature range of -55°C to +125°C. The specific dimensions, tolerance, and other electrical characteristics can be found in the TDK datasheet for this component. Proper mounting and soldering techniques are crucial for ensuring the long-term reliability of the capacitor.
