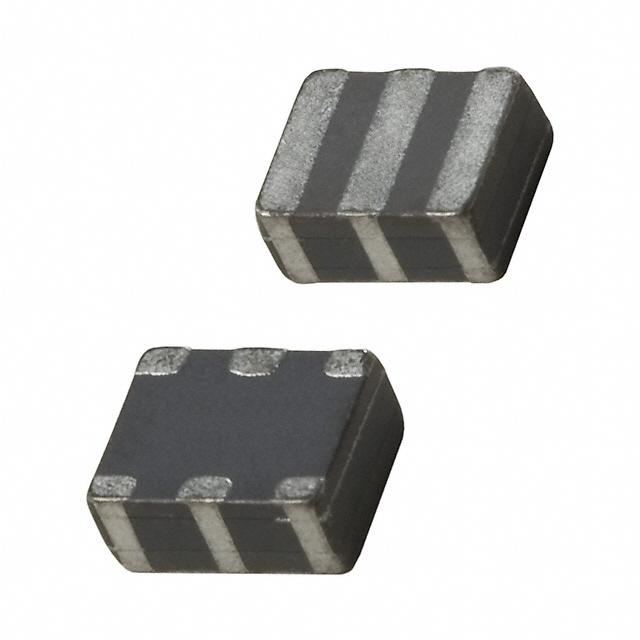

CCR20.0MXC7T

Part No CCR20.0MXC7T
Manufacturer TDK Corporation
Catalog Resonators
Description CER RES 20.0000MHZ 9PF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Ceramic
Frequency 20MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 9pF
Impedance 40 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.047" (1.19mm)
Win Source Part Number 109574-CCR20.0MXC7T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CCR20.0MXC7T CAD Model

Description

Product Overview

The CCR20.0MXC7T is engineered to deliver precise timing and control in electronic systems. Its exceptional frequency tolerance makes it a reliable choice for high-precision needs.

  • High-frequency stability and low phase noise.
  • Compact size for flexibility in circuit design.
  • Long lifespan for sustained performance.

Applications

  • Networking and communication equipment
  • Embedded systems
  • Consumer electronics
  • Test and measurement devices

Features & Benefits

  • Reliability - Engineered for long-lasting operation in critical systems.
  • Versatile - Perfect for diverse electronic applications.
  • Proven performance - Ensures consistent output even in dynamic conditions.

The CCR20.0MXC7T is an optimal choice for projects requiring precision and dependability.
