Same model may have multiple batches, images only for reference.

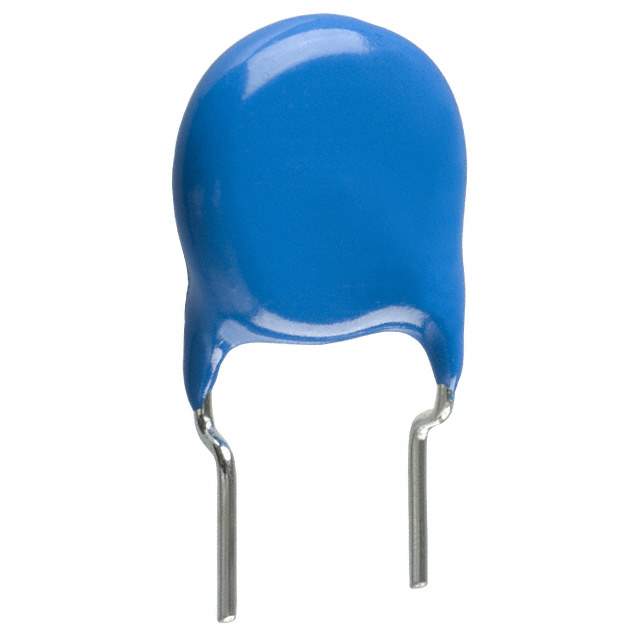

CC45SL3DD471JYNN Real Image
Same model may have multiple batches, images only for reference.

CC45SL3DD471JYNN

Part No CC45SL3DD471JYNN
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 2KV SL RADIAL
Datasheet
CC45SL3DD471JYNN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Bulk
Status Obsolete(EOL)
Capacitance 470pF
Tolerance ±5%
Voltage Rating 2000V (2kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C to 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Through Hole
Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Win Source Part Number 103562-CC45SL3DD471JYNN
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CC45SL3DD471JYNN CAD Model

Description

Product Description for CC45SL3DD471JYNN

The CC45SL3DD471JYNN is a high-quality ceramic capacitor known for its stability and reliability. It is designed to handle various electronic applications requiring efficient energy storage and transfer.

Features and Benefits

  • High Stability: Ensures consistent performance across a range of temperatures.
  • Compact Design: Ideal for space-constrained applications.
  • Durability: Offers long-lasting performance and excellent reliability.

Applications

  • Power supply circuits
  • Signal processing
  • Decoupling applications
  • Timing and tuning circuits

The CC45SL3DD471JYNN is perfect for engineers looking for a dependable capacitor for precision electronic projects.
