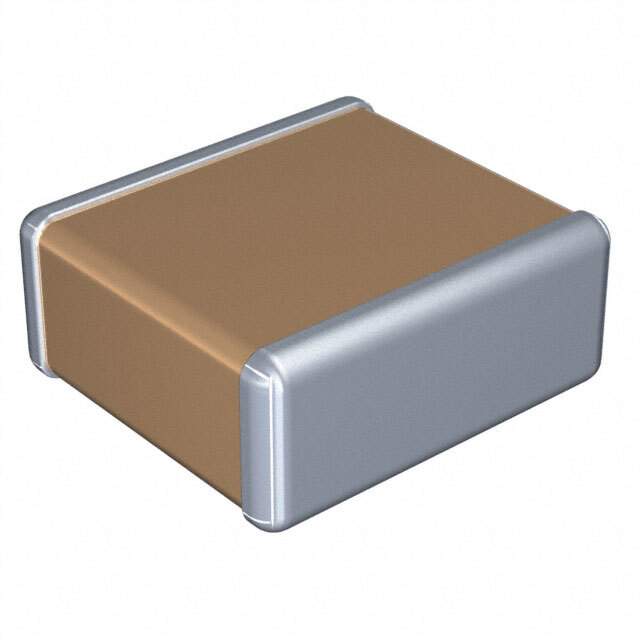

The C7563X7S1H226MT009S is a ceramic capacitor manufactured by TDK Corporation. It belongs to the C series, which are known for their reliability and performance in various electronic circuits. This specific capacitor has a EIA size code of 2925 which translates to dimensions of 7.3mm x 6.5mm. Ceramic capacitors are widely used due to their small size, high capacitance values, and excellent frequency characteristics.

Applications

• Decoupling capacitors in power supplies.
• Smoothing capacitors in DC-DC converters.
• Bypass capacitors in digital circuits.
• Filtering capacitors in audio circuits.
• Snubber circuits for transient voltage suppression.

Features

• High capacitance value: 22µF
• Voltage rating: 50V
• Temperature characteristics: X7S
• Operating temperature range: -55°C to +125°C
• High reliability and long lifespan
• Small size and compact design

Benefits

• Improved circuit stability and noise reduction
• Efficient power delivery and reduced voltage ripple
• Reliable performance in harsh environments
• Extended product lifespan
• Reduced board space requirements

Additional Details

The X7S temperature characteristic indicates that the capacitance changes within ±22% over the operating temperature range of -55°C to +125°C. This makes it suitable for applications where stable capacitance is required over a wide temperature range. The capacitor's compact size allows for high-density circuit designs, while its high voltage rating ensures reliable performance in demanding applications. The part is constructed with a ceramic dielectric, providing high insulation resistance and low leakage current. The termination is designed for surface mount soldering, enhancing manufacturability and reducing assembly costs.
