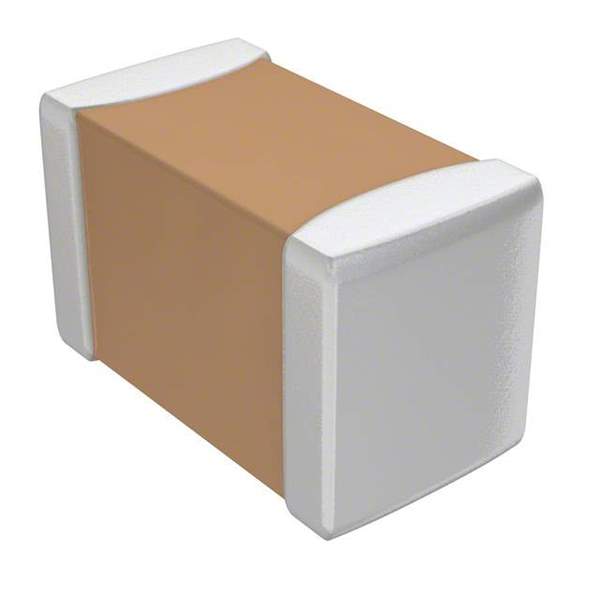

The C1608X7R1C474KT000N is a ceramic capacitor manufactured by TDK Corporation. It belongs to the C1608 series known for its compact size. This capacitor uses X7R dielectric material and is designed for general-purpose applications where moderate temperature stability is required.

Applications

• General Purpose Applications: Suitable for a wide variety of electronic circuits.
• Bypass Capacitors: Used to filter out high-frequency noise from power supplies.
• Decoupling Capacitors: Placed near integrated circuits to provide a local energy source and reduce noise.
• Smoothing Capacitors: Helps smooth out voltage variations in DC power supplies.
• Filtering Circuits: Can be used in signal filtering applications to remove unwanted frequencies.

Features

• X7R Dielectric: Provides good temperature stability and capacitance variation.
• Compact Size (1608): Small footprint suitable for densely populated circuit boards.
• High Capacitance Value: Relatively high capacitance for its size.
• Reliable Performance: Consistent and dependable performance in various applications.
• RoHS Compliant: Meets environmental standards for hazardous substance control.

Benefits

• Versatile Application: Suitable for many electronic circuits.
• Effective Noise Reduction: Helps reduce electrical noise and maintain signal integrity.
• Space Saving: Compact size maximizes board space.
• Cost-Effective: Provides a good balance of performance and cost.
• Improved Circuit Stability: Contributes to stable and reliable circuit performance.

Specifications

The C1608X7R1C474KT000N features a capacitance of 0.47 µF, a voltage rating of 16V, and a tolerance of ±10%. The operating temperature range is typically -55°C to +125°C. The case size is 1608 (0603 in imperial units), which corresponds to dimensions of 1.6mm x 0.8mm. The termination consists of Nickel Barrier with Tin plating.
