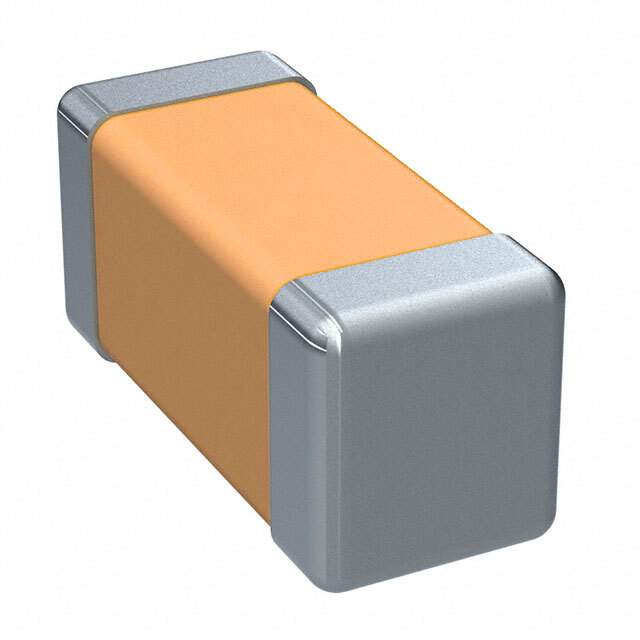

C0402C0G1C4R7CT00NN Real Image
Same model may have multiple batches, images only for reference.

C0402C0G1C4R7CT00NN

Part No C0402C0G1C4R7CT00NN
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4.7PF 16V C0G 01005
Datasheet
C0402C0G1C4R7CT00NN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Capacitance 4.7pF
Tolerance ±0.25pF
Voltage Rating 16V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C to 125°C
Features Low ESL
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Thickness (Max) 0.009" (0.22mm)
Win Source Part Number 201906-C0402C0G1C4R7CT00NN
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian C0402C0G1C4R7CT00NN CAD Model

Description

Product Description

The C0402C0G1C4R7CT00NN is a robust multilayer ceramic capacitor known for its low thermal drift and high stability over a wide temperature range, making it perfect for precision applications.

Features and Benefits

  • Capacitance: 4.7pF
  • Temperature Coefficient: C0G (NP0)
  • Tolerance: ±0.25pF
  • High Q factor for RF applications
  • 0402 package for compact designs

Applications

  • Wireless communication
  • Aerospace systems
  • Automotive electronics

This component is favored in circuits requiring minimal changes due to temperature variations.
