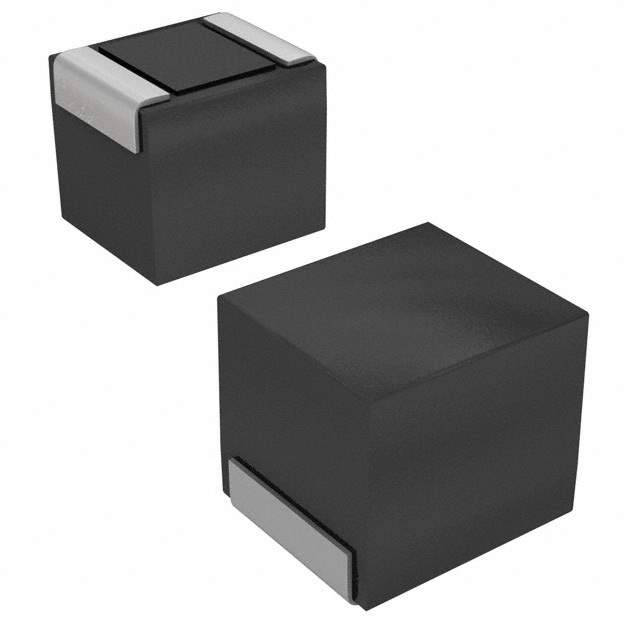

B82442T1153K50 Real Image
Same model may have multiple batches, images only for reference.

B82442T1153K50

Part No B82442T1153K50
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Ind General Purpose Chip Molded Wirewound 15uH 10% 2.52MHz 15Q-Factor Ferrite 1.26A 2220 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 2220
Composition Wirewound
Core Material Ferrite
Current Rating 1.26 A
DC Current 1.26 A
DC Resistance (DCR) 190 mΩ
Depth 5.3 mm
Height 5.3 mm
Inductance 15 µH
Length 5.6134 mm
Max DC Current 1.26 A
Military Standard Not
Mount Surface Mount
Packaging Tape and Reel
Ratings AEC-Q200
RoHS Compliant
Saturation Current 1.87 A
Self Resonant Frequency 16 MHz
Shielding Unshielded
Test Frequency 2.52 MHz
Tolerance 10 %
Width 5.0038 mm
Win Source Part Number 977112-B82442T1153K50
Categories Fixed Inductors
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82442T1153K50 CAD Model

Description

The TDK Corporation B82442T1153K50 is an unshielded wirewound fixed inductor with 15 µH inductance and 10% tolerance.

  • Shielding: Unshielded
  • Type: Wirewound Fixed Inductor
  • Inductance: 15 µH
  • Tolerance: 10%
  • Core Material: Ferrite
  • Self-Resonant Frequency: 16 MHz
  • DC Current: 1.26 A
  • DC Resistance (DCR): 190 mΩ
  • Package: 2220 SMD (SMT)
  • AEC-Q200 Rated: Yes
  • RoHS Compliant: Yes
  • Supply: Tape and Reel
