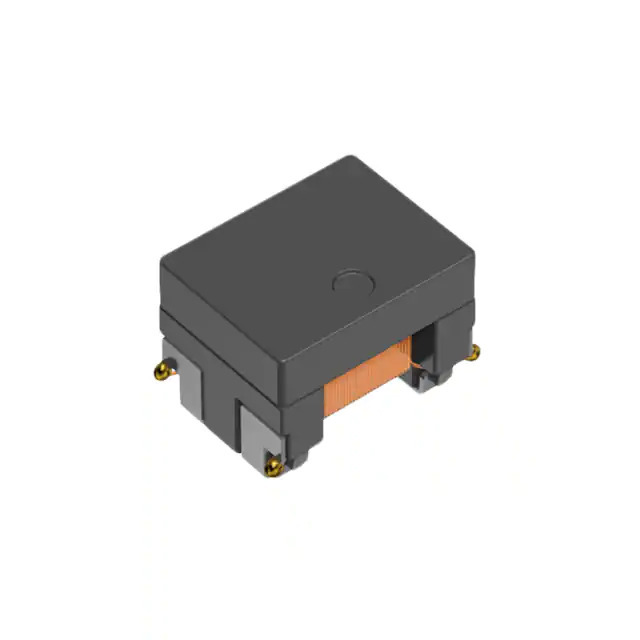

ADL3225VT-4R7M-TL000 TDK Corporation
Same model may have multiple batches, images only for reference.

ADL3225VT-4R7M-TL000

Part No ADL3225VT-4R7M-TL000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 720MA 100MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series ADL-VT
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 720 mA
Current - Saturation (Isat) 720mA
Shielding Shielded
DC Resistance (DCR) 100mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369926-ADL3225VT-4R7M-TL000
Ultra Librarian 3D Model Ultra Librarian ADL3225VT-4R7M-TL000 CAD Model

Description

The ADL3225VT-4R7M-TL000 is a drum core wirewound inductor manufactured by TDK Corporation. It is part of the ADL-VT series and comes in a 1210 (3225 Metric) package. This inductor has an inductance of 4.7 µH and a current rating of 720 mA.

  • Inductance: 4.7 µH
  • Current Rating (Amps): 720 mA
  • Series: ADL-VT
  • Package / Case: 1210 (3225 Metric)
  • Type: Drum Core, Wirewound
  • Mounting Type: Surface Mount
  • Shielding: Shielded
  • Operating Temperature: -40°C ~ 150°C
  • DC Resistance (DCR): 100 mOhm
  • Tolerance: ±20%
  • Automotive AEC-Q200: Yes
  • REACH Status: Unaffected
