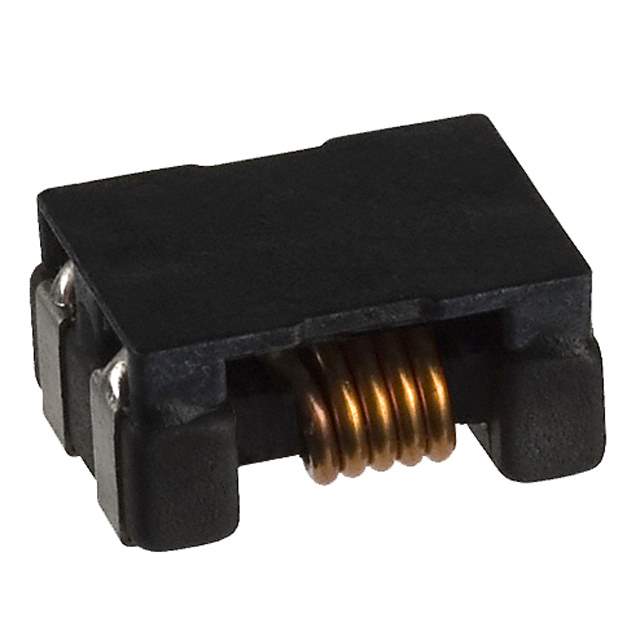

The ACM7060-701 is a common mode choke manufactured by TDK Corporation. These chokes are designed to suppress common mode noise in various electronic circuits, preventing interference and improving signal integrity. They are characterized by their compact size and high performance.

Applications:

• Suppression of Common Mode Noise in USB Lines
• Noise Filtering in Signal Cables
• EMI Suppression in Power Supplies
• Noise Reduction in Automotive Electronics
• Filtering in Communication Lines (e.g., Ethernet)

Features:

• High Common Mode Impedance
• Low Differential Mode Impedance
• Compact Size
• High Current Capability
• Excellent EMI Suppression

Benefits:

• Improved Signal Integrity by reducing common mode noise.
• Reduced EMI emissions, helping systems meet regulatory requirements.
• Enhanced System Reliability by preventing noise-related malfunctions.
• Space-Saving Design for compact electronic devices.
• Effective Noise Filtering for various applications.

Additional Details:

The ACM7060-701 common mode choke features a ferrite core material optimized for effective noise suppression over a wide frequency range. Its compact size allows it to be easily integrated into densely populated circuit boards. This choke is suitable for a wide variety of applications where common mode noise is a concern. TDK's ACM series of common mode chokes are known for their high quality and reliability.
