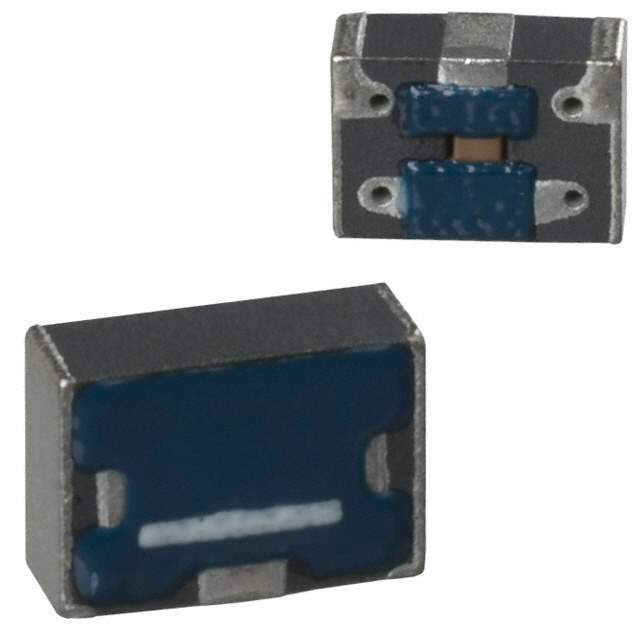

The ACH4518-220 is a common mode choke from TDK Corporation, specifically engineered for the suppression of common mode noise in electronic circuits. It's a part of the ACH4518 series, known for its compact dimensions and effectiveness in mitigating unwanted noise. The primary function of this component is to reduce electromagnetic interference (EMI) and to improve signal integrity across various electronic systems.

Applications:

• USB data lines: Filters out common mode noise in USB interfaces, ensuring stable data transfer.
• HDMI interfaces: Improves signal quality in HDMI connections by reducing noise.
• LVDS signal lines: Suppresses noise in LVDS (Low-Voltage Differential Signaling) applications.
• Audio lines: Cleans up audio signals by minimizing interference and noise.
• Power supply lines: Reduces noise on power lines, protecting sensitive components from damage.

Features:

• Compact Size: Small 4.5mm x 1.8mm footprint, suitable for high-density PCB layouts.
• High Common Mode Impedance: Provides significant suppression of common mode noise signals.
• Low Differential Mode Impedance: Minimizes distortion of the desired differential signal.
• Excellent Temperature Stability: Maintains stable performance across a wide range of operating temperatures.
• RoHS Compliant: Manufactured to be environmentally friendly, complying with RoHS standards.

Benefits:

• Improved Signal Integrity: Reduces noise and interference, resulting in cleaner and more reliable signals.
• Reduced EMI: Minimizes electromagnetic radiation, facilitating compliance with regulatory requirements.
• Increased System Reliability: Protects sensitive electronic components from noise-induced failures.
• Smaller Device Size: The compact size allows for the miniaturization of electronic devices.
• Cost-Effective Solution: Provides a reliable and affordable method for common mode noise reduction.

Additional Details:

The ACH4518-220 has an impedance of 22 Ohms at 100 MHz. The rated current typically ranges from 100mA to 300mA. Its operating temperature range is generally between -40°C and +85°C. This component is designed for surface mount assembly and is suitable for automated manufacturing processes. The choke's design optimizes high common mode impedance with minimal impact on differential signals. Proper soldering and reflow profiles are critical to ensuring optimal performance and long-term reliability.
