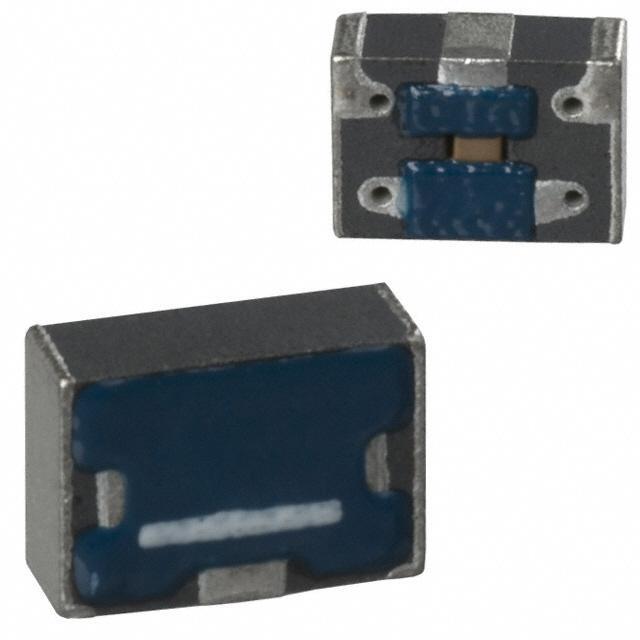

Same model may have multiple batches, images only for reference.
ACH4518-102-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH4518-102-TD01

Part No ACH4518-102-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-102-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 65MHz to 150MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007829-ACH4518-102-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-102-TD01 CAD Model

Description

ACH4518-102-TD01 Description

The ACH4518-102-TD01 is a versatile electronic component that offers superior performance in a range of technological applications. Designed for efficiency, this component is perfect for developers looking to enhance their system's functionality.

  • Application/Projects:
    • Mobile devices
    • Telecommunication systems
    • Renewable energy solutions
    • Medical instruments
  • Features and Benefits:
    • Enhanced energy efficiency
    • Durable and reliable operation
    • Compact footprint for space-saving designs
    • Optimized for thermal management
  • Additional Details:
    • Compliant with international safety and quality standards
    • Easy installation and maintenance
