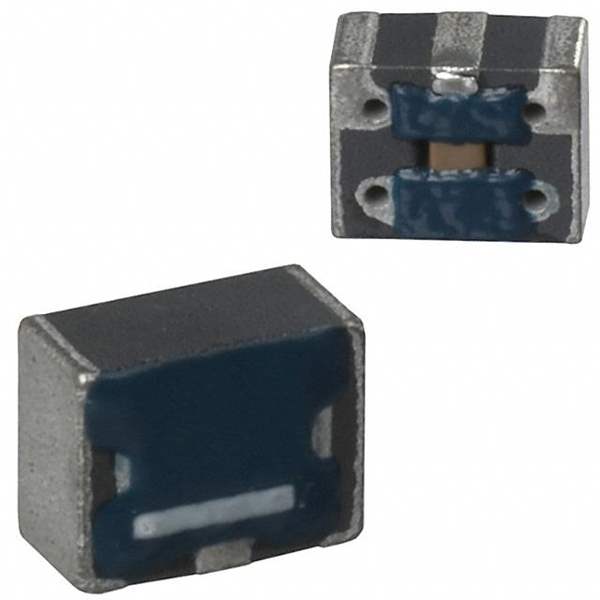

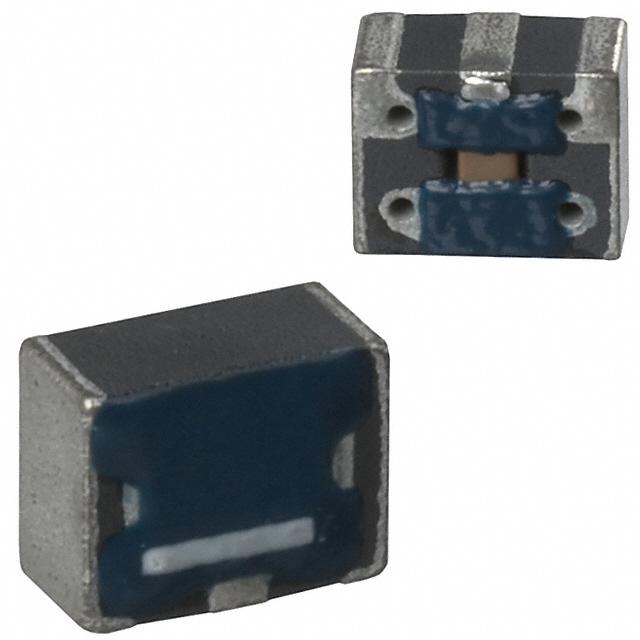

ACH3218-471-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH3218-471-TD01

Part No ACH3218-471-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH3218-471-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 120MHz to 180MHz
Resistance - Channel (Ohms) 0.06
Current 1.5A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height 0.108" (2.75mm)
Win Source Part Number 007824-ACH3218-471-TD01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACH3218-471-TD01 CAD Model

Description

ACH3218-471-TD01 Inductor

The ACH3218-471-TD01 is a robust and compact inductor designed for efficiency across various electronic applications. Known for its reliability and performance, this component is an essential part of power supplies and energy storage systems.

Applications/Projects:

  • DC-DC converters
  • Power management in portable devices
  • Automotive electronics

Features and Benefits:

  • High-temperature tolerance
  • Low core loss
  • Compact size for space-constrained projects

The ACH3218-471-TD01's optimized design ensures minimal electromagnetic interference and superior thermal performance, making it an excellent choice for modern electronics.
