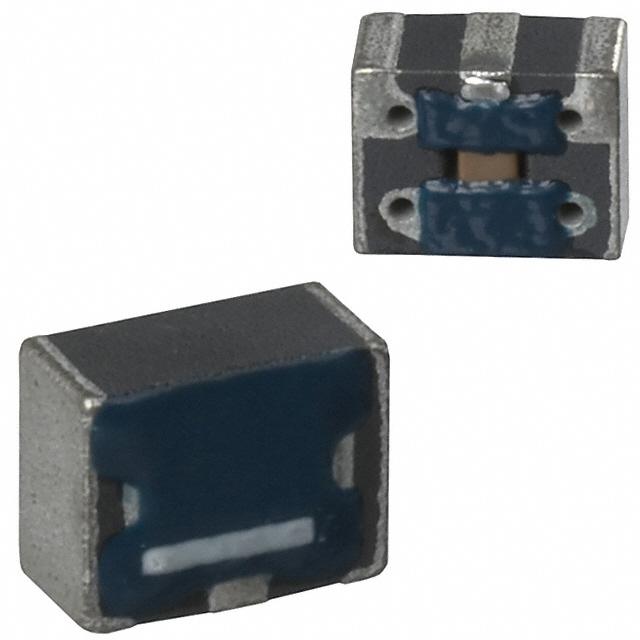

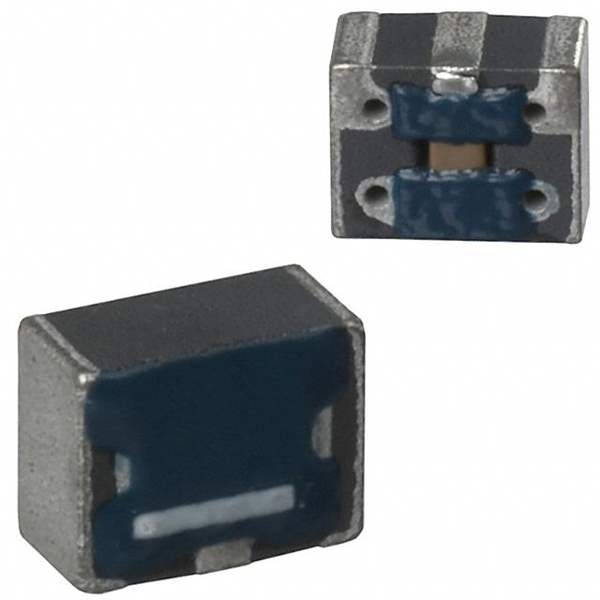

ACH3218-470-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH3218-470-TD01

Part No ACH3218-470-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH3218-470-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 420MHz to 500MHz
Resistance - Channel (Ohms) 0.06
Current 1.5A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height 0.108" (2.75mm)
Win Source Part Number 007823-ACH3218-470-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH3218-470-TD01 CAD Model

Description

Product Overview

The ACH3218-470-TD01 is an innovative inductor known for its reliable performance in highly demanding electronics environments. It is an excellent choice for aerospace, defense, and medical applications.

Features and Benefits

  • Exceptional build quality to withstand rigorous conditions.
  • Optimized for low noise and high fidelity signal processing.
  • High inductance with minimal energy loss.
  • Compliance with high industry standards for safety and reliability.

Applications/Projects

  • Aerospace navigation systems.
  • Military communication devices.
  • Medical imaging devices.
  • Advanced research equipment.
