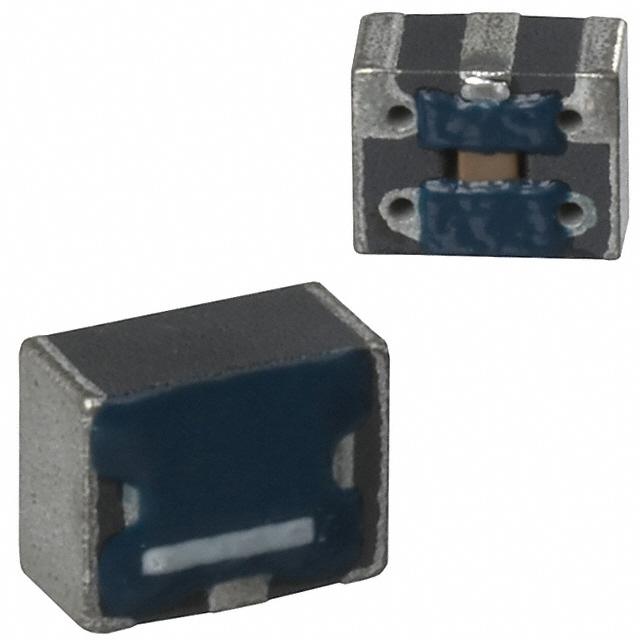

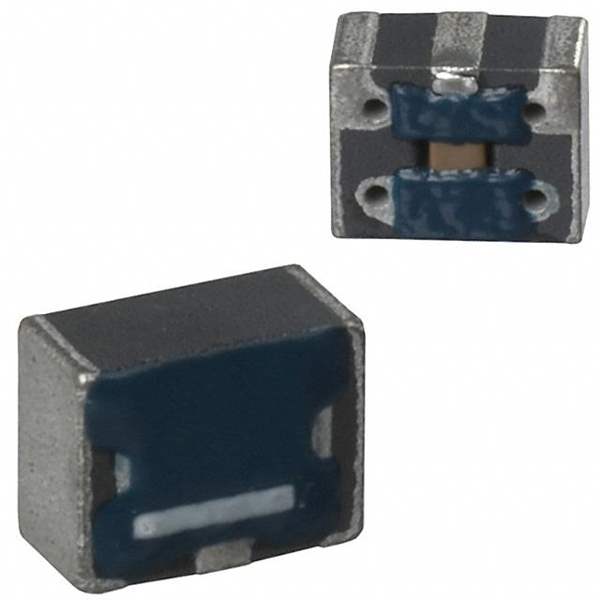

ACH3218-332-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH3218-332-TD01

Part No ACH3218-332-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH3218-332-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 37MHz to 90MHz
Resistance - Channel (Ohms) 0.06
Current 1.5A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height 0.108" (2.75mm)
Win Source Part Number 126185-ACH3218-332-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH3218-332-TD01 CAD Model

Description

Product Overview

The ACH3218-332-TD01 is a high-performance inductor that excels in power and signal conditioning applications. It is frequently used in renewable energy systems, smart grids, and other energy-efficient technologies.

Features and Benefits

  • High saturation current for better load handling.
  • Excellent linearity for precise signal conditioning.
  • Environment-friendly construction materials.
  • Exceptional electromagnetic interference reduction.

Applications/Projects

  • Renewable energy converters.
  • Smart metering devices.
  • UPS (Uninterruptible Power Supply) systems.
  • Energy-efficient HVAC systems.
