ACF451832-223-TD01

Part No ACF451832-223-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)

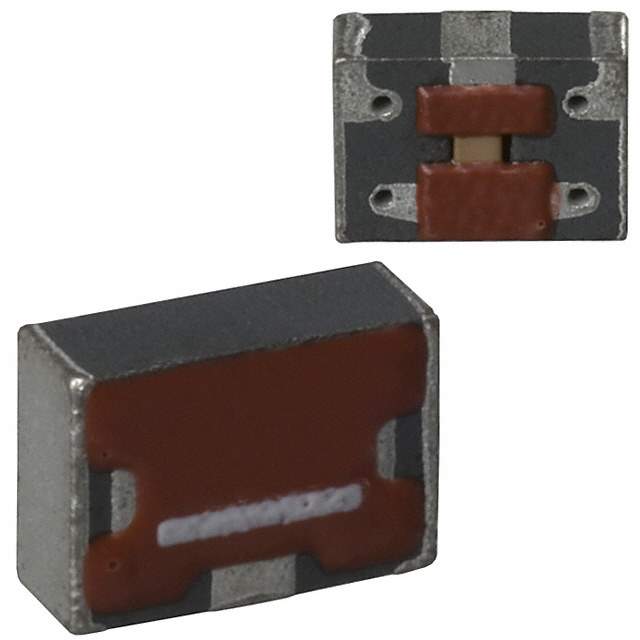

Description EMI Filter LC-Circuit 25dB 0.3A 50VDC Flat Style SMD T/R / FILTER LC(T) SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 9MHz to 65MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Win Source Part Number 007810-ACF451832-223-TD01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ACF
Introduction Date July 26, 2001
ECCN EAR99
Country of Origin Japan, United States of America
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian ACF451832-223-TD01 CAD Model

Description

ACF451832-223-TD01

The ACF451832-223-TD01 is a highly reliable electronic component designed for diverse applications. With its precise engineering and robust functionality, this component is ideal for projects that demand efficiency and durability.
