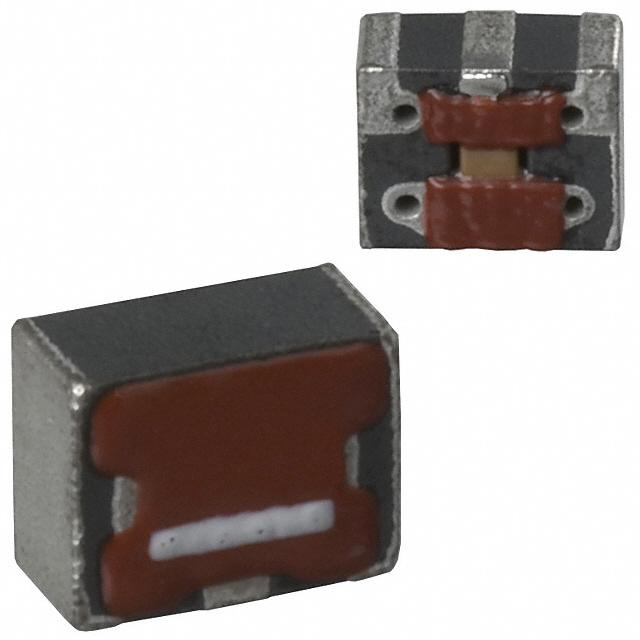

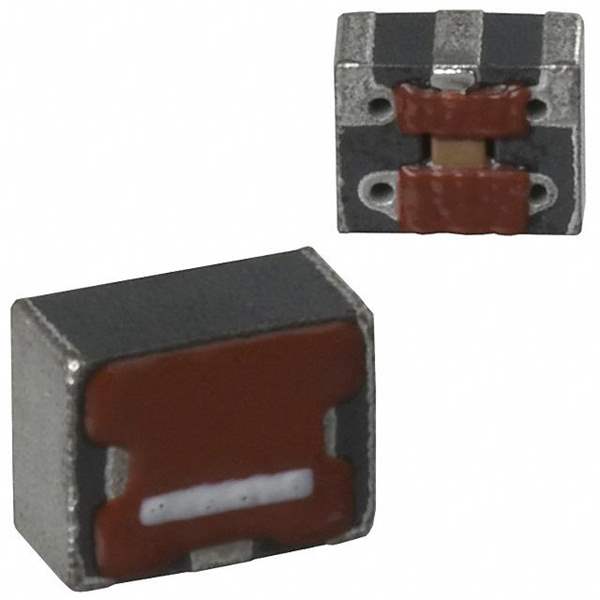

ACF321825-471-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACF321825-471-TD01

Part No ACF321825-471-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-471-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 120MHz to 180MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 007800-ACF321825-471-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF321825-471-TD01 CAD Model

Description

Product Description

The ACF321825-471-TD01 is engineered for superior functionality and durability. It is an essential component for applications requiring precise inductance value and stable operation under varied conditions.

Features

  • Inductance: 470μH
  • Compact size
  • High permeability core
  • Excellent thermal properties

Benefits

  • Reduces circuit complexity
  • Enhances overall system reliability
  • Long operational life

Applications

  • Switch-mode power supplies
  • Telecommunications equipment
  • LED lighting drivers

Additional Information

Suitable for designs demanding minimal electromagnetic interference, the ACF321825-471-TD01 is a versatile component, contributing to efficient energy management across applications.
