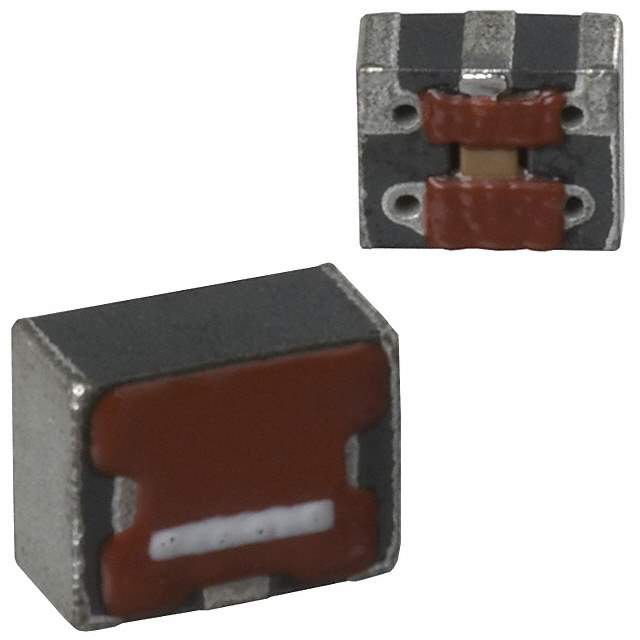

The TDK ACF321825-470 is an EMI/RFI filter designed to suppress unwanted electromagnetic interference (EMI) and radio-frequency interference (RFI) in electronic circuits. As a product of TDK Corporation, a global leader in electronic components, this filter is engineered for effective noise suppression and signal integrity in various applications. It's a crucial component for ensuring compliance with electromagnetic compatibility (EMC) standards and improving the overall performance of electronic devices.

Applications

• Mobile phones and smartphones to reduce interference with wireless signals.
• Digital cameras and imaging equipment for noise-free image processing.
• Audio equipment to eliminate unwanted noise and distortion.
• Computer and networking equipment to meet EMC regulations.
• Automotive electronics to protect sensitive circuits from external interference.

Features

• Impedance: 47 Ohms at 100 MHz, providing effective noise suppression.
• Size: Compact 3218 (1206) package for easy integration into space-constrained applications.
• Material: Ferrite material for high attenuation of EMI/RFI signals.
• Construction: Multi-layer chip inductor for improved performance.
• Operating Temperature: Wide operating temperature range for use in various environments.

Benefits

• Effective Noise Suppression: Reduces unwanted noise and interference in electronic circuits.
• Improved Signal Integrity: Enhances the clarity and accuracy of signals.
• EMC Compliance: Helps meet regulatory requirements for electromagnetic compatibility.
• Compact Size: Allows for easy integration into small devices.
• Enhanced Reliability: Ensures stable performance and reduces the risk of system failures.

Additional Details

The ACF321825 series filters from TDK are known for their high performance and reliability. They are typically manufactured using advanced ceramic and ferrite materials. The filter is designed to meet stringent industry standards for EMI/RFI suppression. It is commonly used in applications where noise reduction is critical for proper operation. The datasheet provides detailed information on the filter's electrical characteristics, mechanical dimensions, and environmental specifications.
